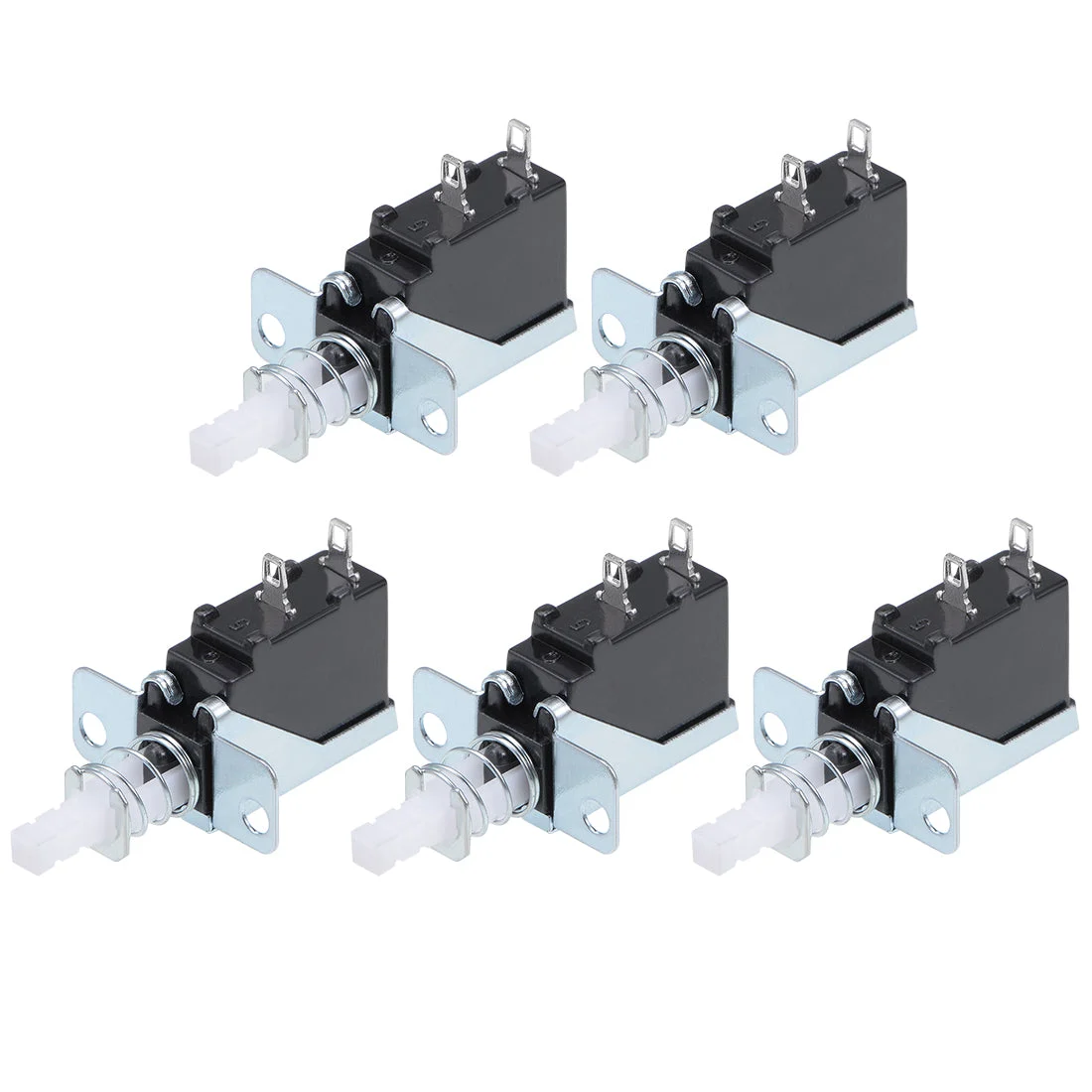

Push Button Switch 5A 250V SPST 2 Pin 1 Position Self-Locking White 5pcs

About this item

• [Standard] – SPST 2 Pins 8mm Pitch 1 Position
• [Latching Switch] – Self locking straight through hole miniature switch
• [Features] – Mechanism design offers acute operation and long service life
• [Applications] – Ideal for mounting on PCB motherboard of many electric appliances
• [Package Content] – 5pcs x Push Button Switch

Specifications:

Material: Plastic, Metal

Switch Operation: Latching

Contact Configuration: SPST

Terminal Type: Straight Through Hole

Pin Quantity: 2

Pin Pitch: 8mm

Position Quantity: 1

Current: 5A

Voltage: 250V

Mounting Pillar Distance: 5.5mm / 0.22-inch

Mounting Hole Distance: 19mm / 0.75-inch

Cap Mounting Part: 8 x 3.5mm / 0.31-inch x 0.14-inch(L*W)

Overall Size: 43 x 25 x 22mm / 1.69-inch x 0.98-inch x 0.87-inch(L*W*H)

Package Contents:

5pcs x Push Button Switch

Description:

Latching contact, 2 pins, DIP through hole mounting.

Used in the fields of electronic products, household appliances and more.

High precision mechanism design offers acute operation and long service life.
