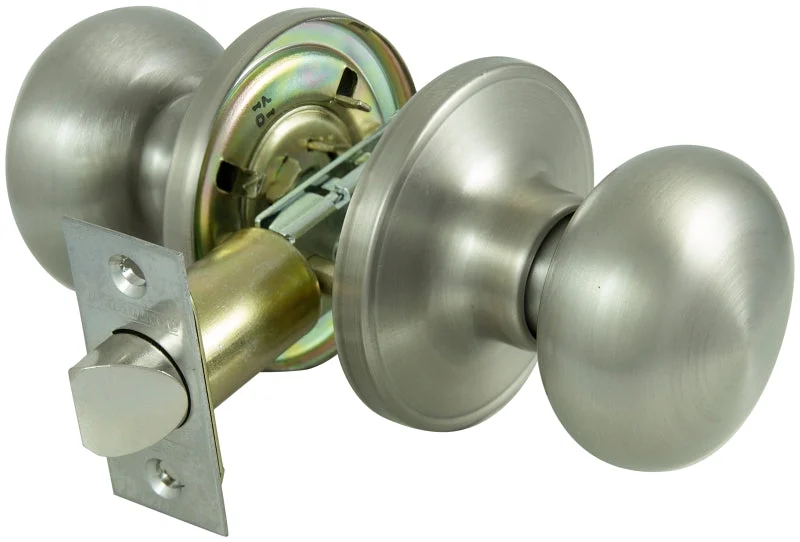

For hall and closet doors, all interior doors where a simple latch is all that is required. Both knobs always free, no locking mechanism. All-metal components. Solid steel latch assembly. Seamless one piece knob for extra strength. Easy installation. Square spindle for right or left-handed installations. six-way adjustable latch fits 2-3/8 to 2-3/4 in square corner, radius corner or drive-in applications, includes both square and radius corner strikes.
Unit: CD
UPC: 045734655980
Model Number: TFX230V-PS
Features
- Patented adjustable latch of 2-3/8 to 2-3/ 4 in (60 to 70 mm) backset fits most doors
Additional Information
- Backset Size: 2-3/8 to 2-3/4 in
- Backset Type: Adjustable
- Bolt Throw Size: 12.5 mm
- Cross Bore Diameter: 2-1/8 in
- Design: Baron
- Door Thickness: 1-3/8 to 1-3/4 in
- Edge Bore Diameter: 1 in
- Faceplate Size: 25.2 x 56.7 mm
- Finish: Satin Nickel
- Includes: Latch Faceplate
- Latch Type: 6-Way Adjustable
- Material: Metal
- Mounting Type: Screw
- Projection Size: 60.7 mm
- Strike Size: 44 x 57 mm
- Strike Type: Full Lip Round Corner
- Suitable for: 1-3/8 to 1-3/4 in THK Doors
- Throw Length: 12.5 mm
