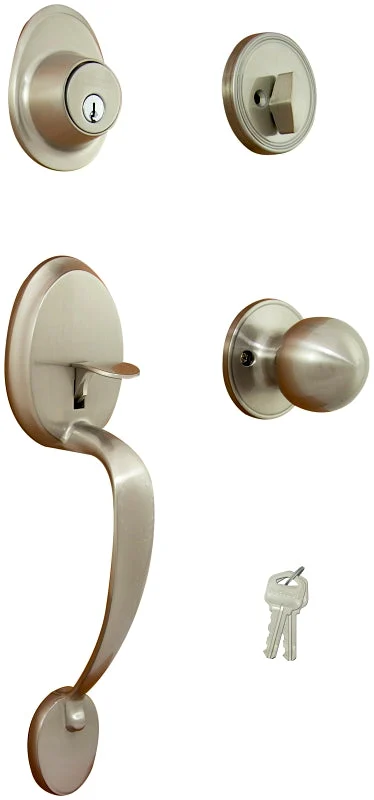

The keyless handleset has a forged solid brass full handle and interior knob with single cylinder deadbolt. The latch bolt is operated by thumbpiece outside and grip inside and the deadbolt is operated by key outside and turn piece inside.
Unit: CD
UPC: 045734656680
Model Number: S7P31-PS
Features
- Keyless
Additional Information
- Backset Size: 2-3/8 2-3/4 in
- Center to Center: 5-1/2 in
- Commercial/Residential: Residential
- Cross Bore Diameter: 2-1/8 in
- Cylinder Type: 5-Pin
- Deadbolt Latch Throw: 1 in
- Dimensions: 423 x 400 x 468 mm
- Door Handing: Reversible
- Door Thickness: 1-3/4 to 1-3/8 in
- Edge Bore Diameter: 1 in
- Faceplate Size: 1 x 2-1/4 in
- Finish: Satin Nickel
- Grip Center to Center: 8-5/8 in
- Interior Handle Type: T3
- Key Type: Keyed
- Keyway Type: KW1
- Latch Type: 6-Way
- Material: Brass
- Number of Cylinders: 1
- Projection Size: 1 in Deadlock 1/2 in Plain Latch
- Security Grade: 3
- Strike Size: 44.8 x 57 mm Knob 25.4 x 57 mm Deadbolt mm
- Strike Type: Radius Corner
- Suitable for: For Use on Exterior Doors Where Keyed Entry and Security is Needed
