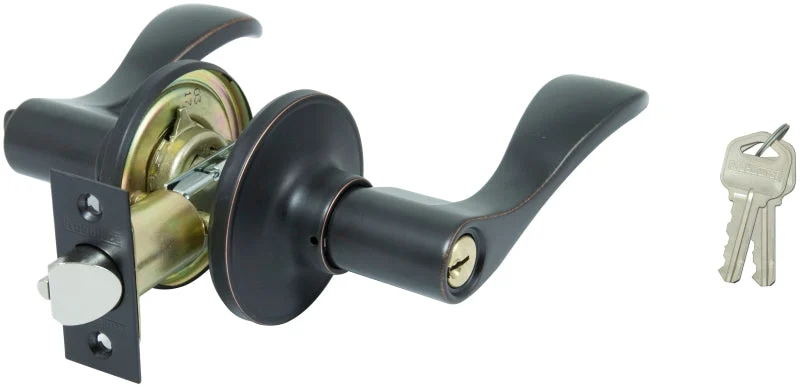

The leverset are for keyed exterior doors. Both levers lock or unlock by key outside or turn button inside. It has a reversible handing and an adjustable six-way latch and radius round corner strike.
Unit: CD
UPC: 045734657434
Model Number: LYEX00V-PS
Features
- KW1 keyway
- For residential use
- 1-3/8 to 1-3/4 in door thickness
- Aged bronze finish
Additional Information
- Backset Size: 2-3/8 x 2-3/4 in
- Bolt Throw Size: 1/2 in
- Cross Bore Diameter: 2-1/8 in
- Cylinder Type: 5-Pin
- Dimensions: 478 x 380 x 283 mm
- Door Handing: Reversible
- Edge Bore Diameter: 1 in
- Faceplate Size: 1 x 2-1/4 in
- Key Type: Alike
- Keyway Type: KW1
- Latch Type: 6-Way
- Material: Zinc
- Number of Cylinders: 1
- Package Type: Visual Pack
- Rose/Base Dimensions: 65.7 mm
- Security Grade: 3
- Strike Size: 44.8 x 57 mm
- Strike Type: Full Lip Round Corner
- Throw Length: 1/2 in
Application: For keyed exterior doors
