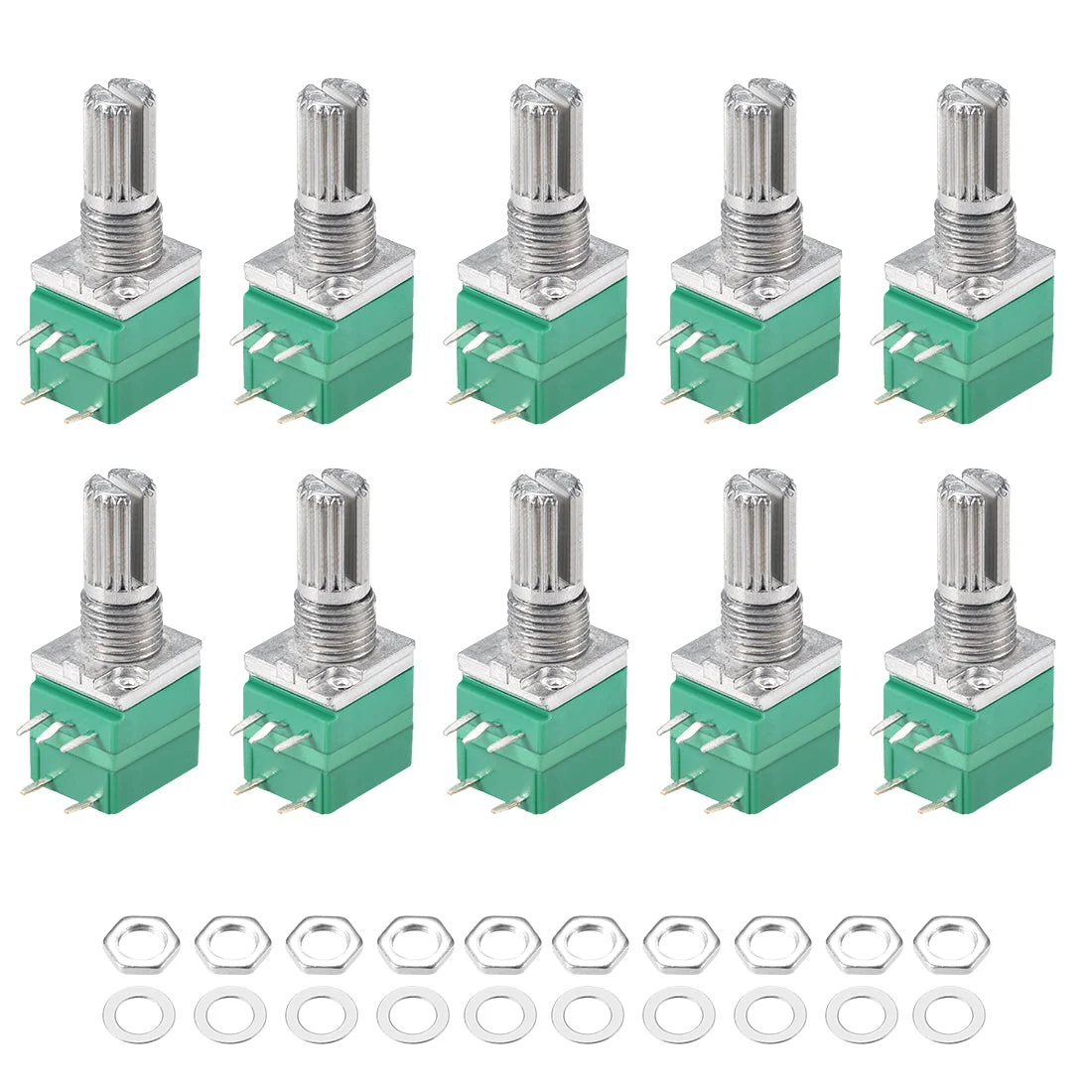

Potentiometer With Switch B5K Ohm Variable Resistors Single Turn Rotary Carbon Film Taper RV097NS 10pcs

About this item

• 1. Model: RV097NS, 5K ohm, Tolerance: +/-10%, 5 Terminals, Single Linear, Suits Most Standard Knobs.（this item do not include Knobs)
• 2. About Size: Shaft Diameter: 6mm/0.24 inch, Total Size: 27mm x 9mm x 11mm/1.06″ x 0.35″ x 0.43″(L*W*H)(not included pin)
• 3. Knurled shaft with split design for push-on knob.
• 4. Main used to control electrical devices such as volume controls on equipment.
• 5.Top adjustment type and knurled shaft for easy operate in daily use.

Description:

1.Single Linear, Suits Most Standard Knobs.(this item do not include Knobs)

2.Top adjustment type and knurled shaft for easy operate in daily use.

3. Main used to control electrical devices such as volume controls on equipment.

4. Knurled shaft with split design for push-on knob.

Specification:

Product Name: Carbon Film Potentiometer

Model: RV097NS

Material: Carbon film Metal

Resistance Value: 5K ohm

Tolerance: +/-10%

Turn Number: Single Turn

Terminals Number: 5

Features: Round Shaft

Total Size: 27mm x 9mm x 11mm/1.06 x 0.35 x 0.43 inch (L*W*H)(not included pin)

Screw Thread Dia.: 6.7mm

Shaft Diameter: 6mm/0.24 inch

Shaft Length(do not include the Screw Thread parts): 10mm/0.39 inch

Package Content:

10x Carbon Film Potentiometer
