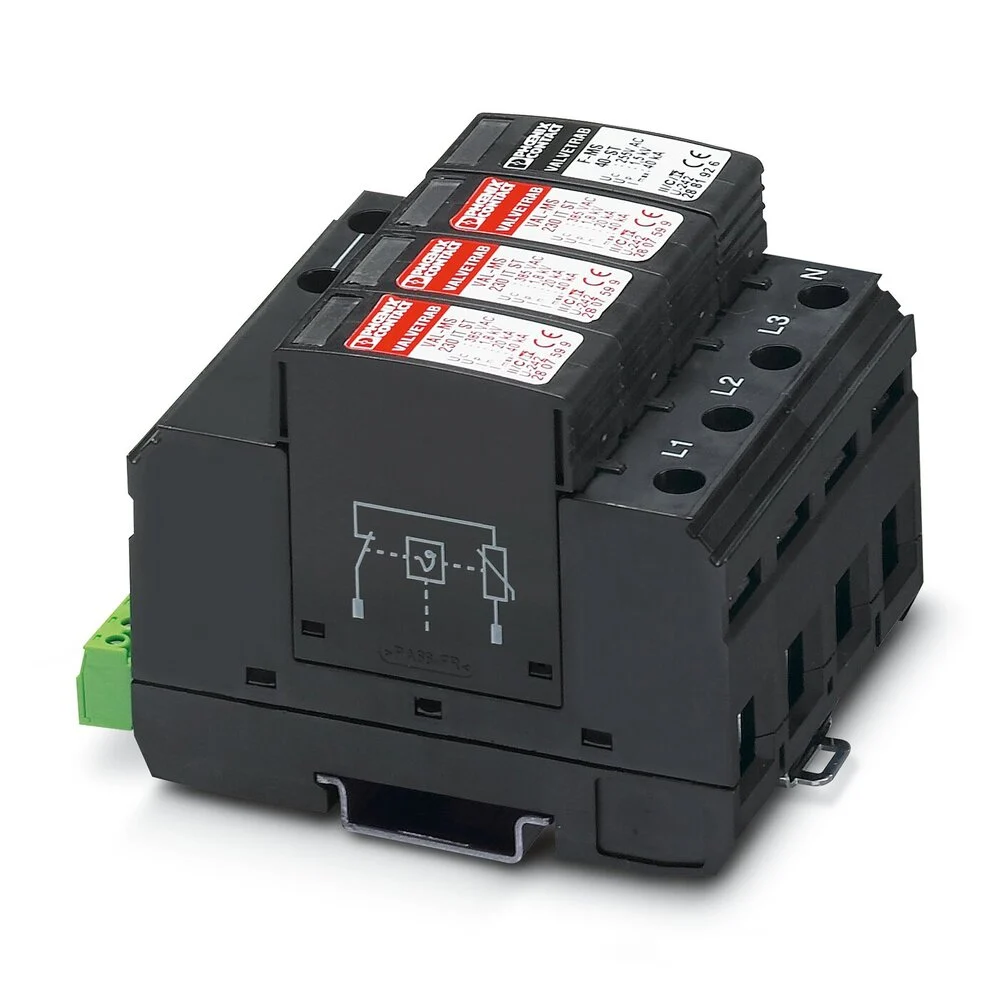

Phoenix Contact VAL-MS Mains Surge Protector – 2838199

The phoenix contact’s type 2 surge arrester consisting of base element with remote indicator contact and ground connectors, for mounting on ns 35/7.5. Mounting type din rail: 35 mm. Colour jet black ral 9005. Housing material pa 6.6, pbt. Height 98.7 mm. Width 71 mm. Depth 65.7 mm.

Specifications

System configuration DC : No
System configuration IT : No
System configuration TN : No
System configuration TN-C : No
System configuration TN-C-S : No
System configuration TN-S : Yes
System configuration TT : No
System configuration other : No
Nominal discharge surge current (8/20) (kA) : 20
Max. discharge surge current (8/20) (kA) : 40
Max. continuous voltage AC (V) : 275
Max. continuous voltage DC (V) : 30
Voltage protection level (kV) : 1.6
Voltage protection level L-N (kV) : 1.35
Voltage protection level N-PE (kV) : 1.5
Max. overcurrent protection device, parallel connection (fuse) (A) : 125
Max. overcurrent protection device, series connection (fuse) (A) : 80
Short-circuit breaking capacity (Isccr) (kA) : 25
Integrated backup fuse : Yes
Leakage-current free : No
Mounting method : DIN rail (top hat rail) 35 mm
Construction size : Other
Max. conductor cross section solid (solid, stranded) (mm²) : 1.5
Max. conductor cross section flexible (fine-strand) (mm²) : 25
With remote signalling contact : Yes
Signalling at the device : Optic
Category type 2 : Yes
Degree of protection (IP) : IP20
