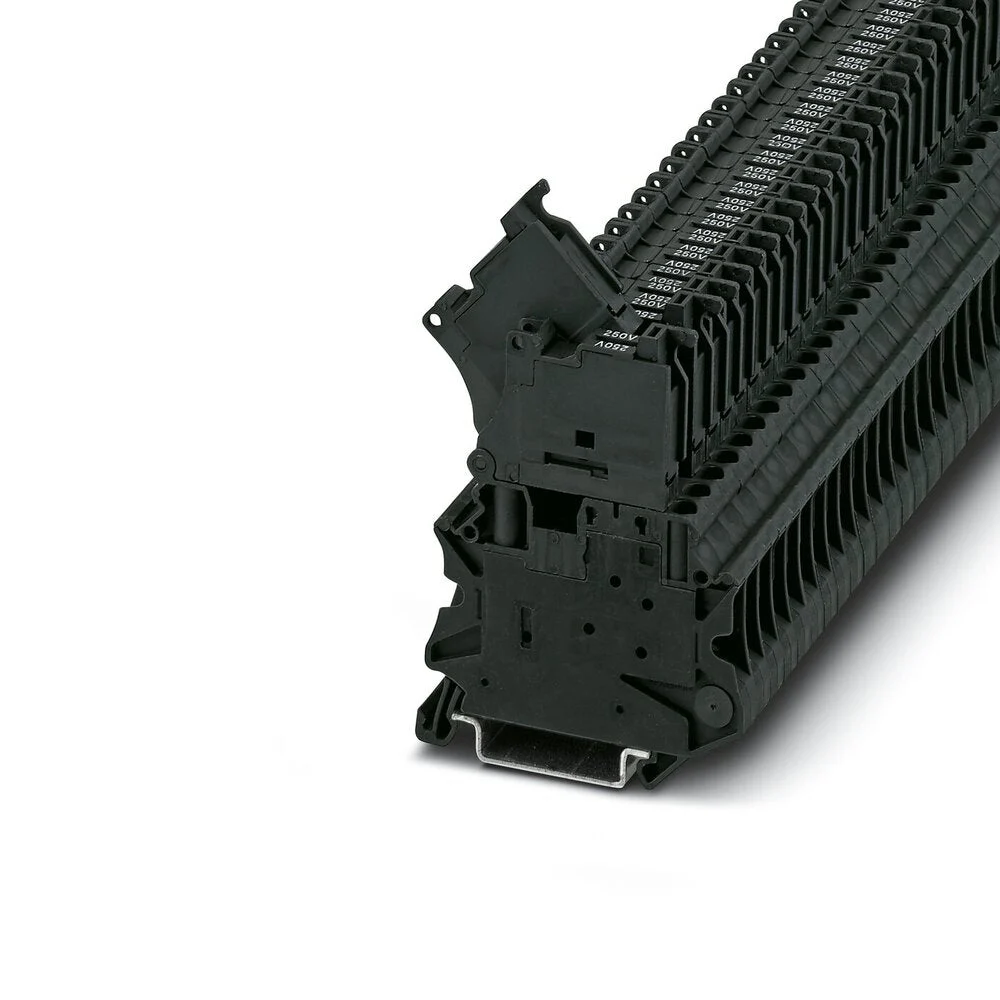

Phoenix Contact UT Fuse Clamp – 3046100

Universal lever fuse terminals. Fuse terminals (hesi) adopt the functional operation of the fuse holder and power distribution. Lever disconnect terminals (hedi) enable two bridging power sources to be directed separately in parallel (time-saving power supply). G-type fuse insert 5 x 20 mm. Standards. Iec 60947-7-3. Approvals. Ul, csa. Phoenix contact clipline ut range.

Specifications

Type of fuse insert : Other
Type of fuse holder : Other
Type of indication element for defect indication : None
Supply voltage for defect-indication (V) : 110 V to 250 V
Voltage type for defect indication : AC/DC
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.14 mm² to 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.14 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²) : 0.14 mm² to 6 mm²
Connectable conductor cross section multi-wired (mm²) : 0.14 mm² to 1.5 mm²
Rated current In (A) : 6.3
Rated voltage (V) : 250
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Screw connection
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Other
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 6.15
Height (mm) : 57.8
Depth (mm) : 74.98
Closing plate required : No
Color : Black
