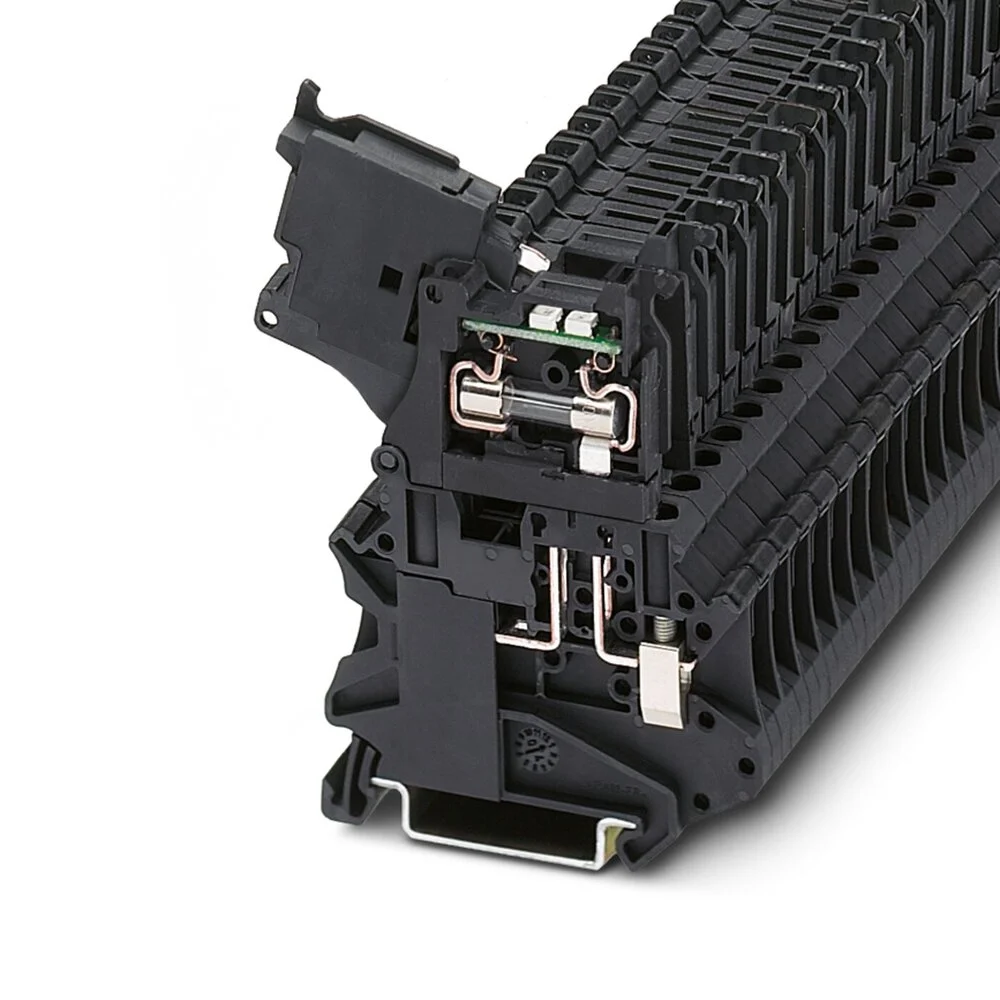

Phoenix Contact UT Fuse Clamp – 3046090

This clamp is characterized by a compact design and has an LED indicator. With two function shafts, all tasks of potential distribution can be realized time-savingly. Test tap into the fuse handle on both sides. Phoenix Contact UT fuse row clamps are available in several varieties.

Specifications

Type of fuse insert : Other
Type of fuse holder : Other
Type of indication element for defect indication : LED
Supply voltage for defect-indication (V) : 12 V to 30 V
Voltage type for defect indication : AC/DC
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.14 mm² to 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.14 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²) : 0.14 mm² to 6 mm²
Connectable conductor cross section multi-wired (mm²) : 0.14 mm² to 1.5 mm²
Rated current In (A) : 6.3
Rated voltage (V) : 24
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Screw connection
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Other
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 6.15
Height (mm) : 57.8
Depth (mm) : 74.98
Closing plate required : No
Color : Black
