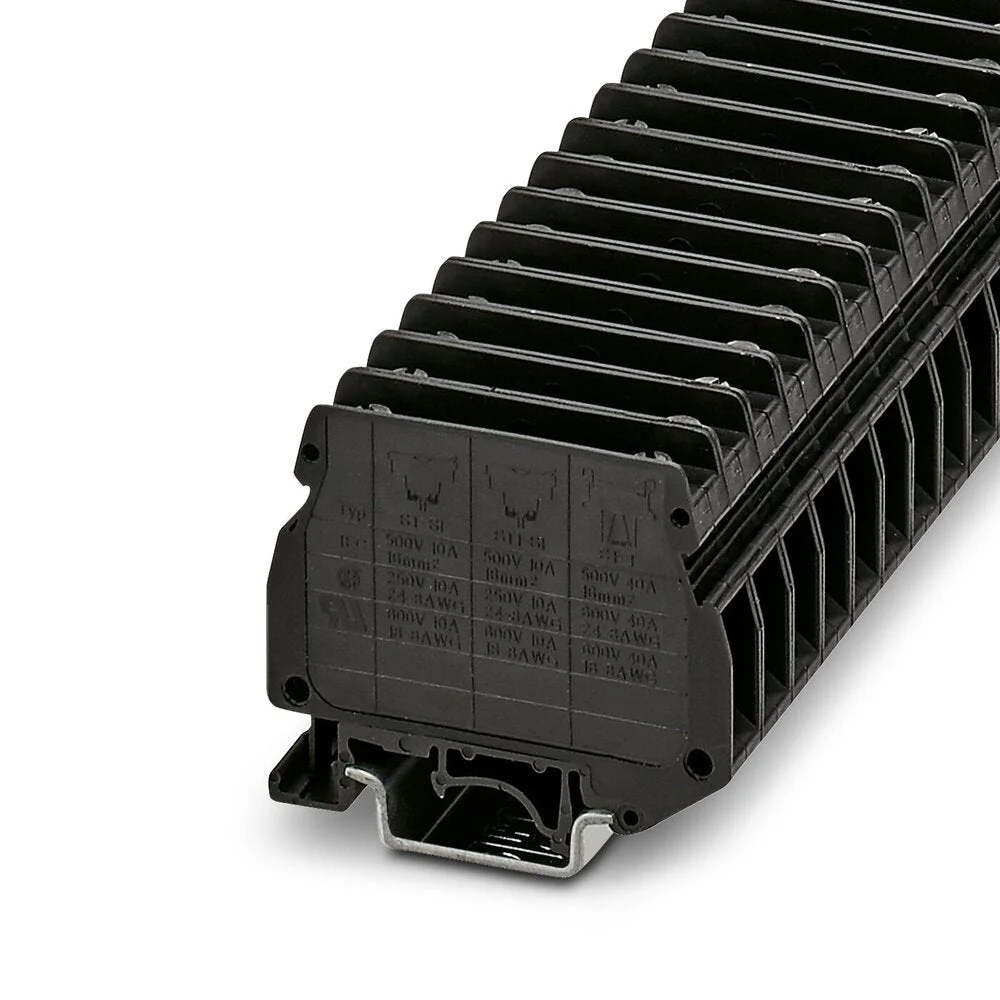

Fuse modular terminal block, without fuse plug, nom. Voltage = 500 V, nominal current = 10 A, 1 level, connection method = Screw connection, Rated cross section = 1.5 mm2, cross section = 0.5 mm2 – 16 mm2, mounting = NS 35/7,5, NS 35/15, NS 32, color = black.
Specifications
Type of fuse insert : G-fuse 6.3×32 mm
Type of fuse holder : Pluggable
Type of indication element for defect indication : None
Supply voltage for defect-indication (V) : 0 V to 0 V
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.5 mm² to 16 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.5 mm² to 0.5 mm²
Connectable conductor cross section solid-core (mm²) : 0.5 mm² to 16 mm²
Connectable conductor cross section multi-wired (mm²) : 0.5 mm² to 4 mm²
Rated current In (A) : 10
Rated voltage (V) : 500
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Screw connection
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Other
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 10.2
Height (mm) : 61
Depth (mm) : 51.6
Closing plate required : No
Color : Black
