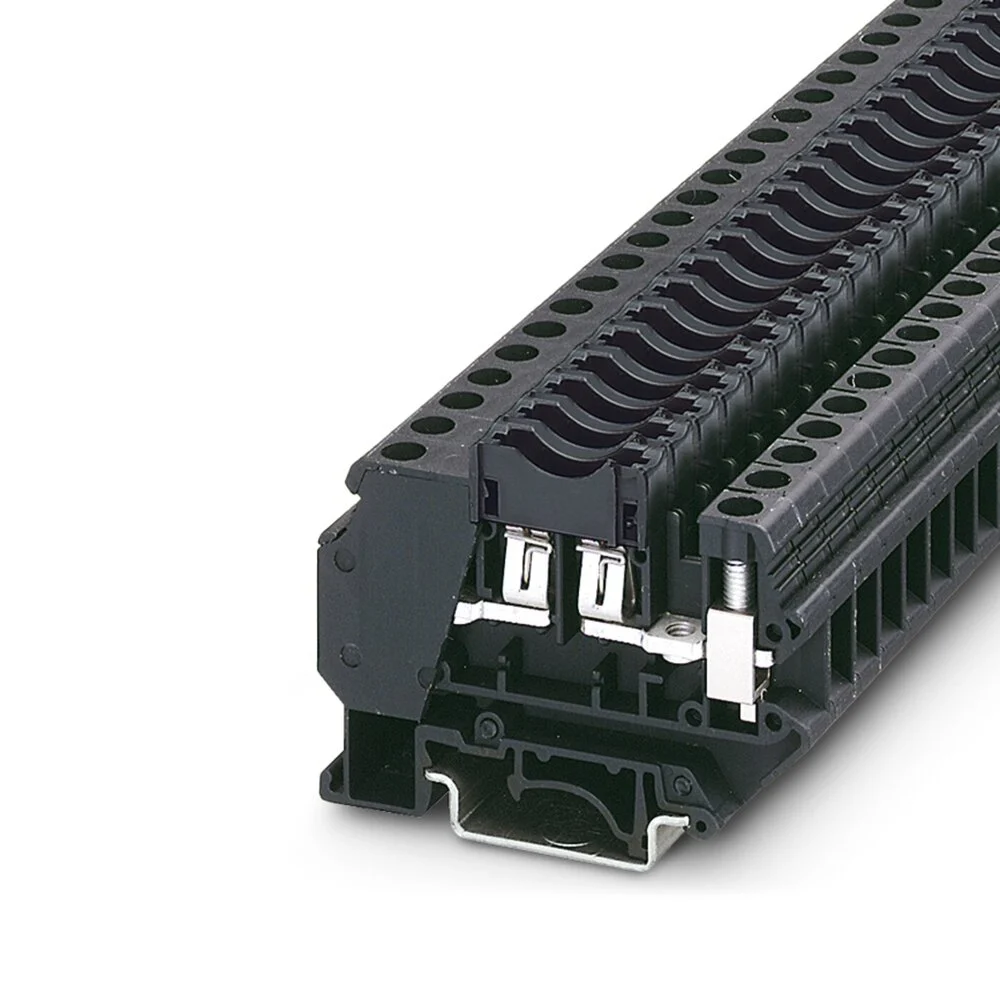

Phoenix contact flat-type fuse terminal block. Uk 6-fsi/c is a single tier terminal block equipped with a location for flat-type fuses. The black polyamide (pa) terminal block has 2 connections and a maximum load current of 30a. Note. Nominal voltage and current: – in accordance with csa: 30 a @ 32 v. – in accordance with ul: 30 a @ 300 v. Phoenix contact flat-type fuse terminal block, 250v, 30a – uk 6-fsi/c – 3118203. Use this modular terminal block from phoenix contact contact to efficiently and safely connect your wiring.
Specifications
Type of fuse insert : Blade fuse
Type of fuse holder : Pluggable
Type of indication element for defect indication : None
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.2 mm² to 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.25 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²) : 0.2 mm² to 10 mm²
Connectable conductor cross section multi-wired (mm²) : 0.2 mm² to 2.5 mm²
Rated current In (A) : 30
Rated voltage (V) : 250
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Screw connection
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Other
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 8.15
Height (mm) : 64.2
Depth (mm) : 46.728
Closing plate required : No
Color : Black
