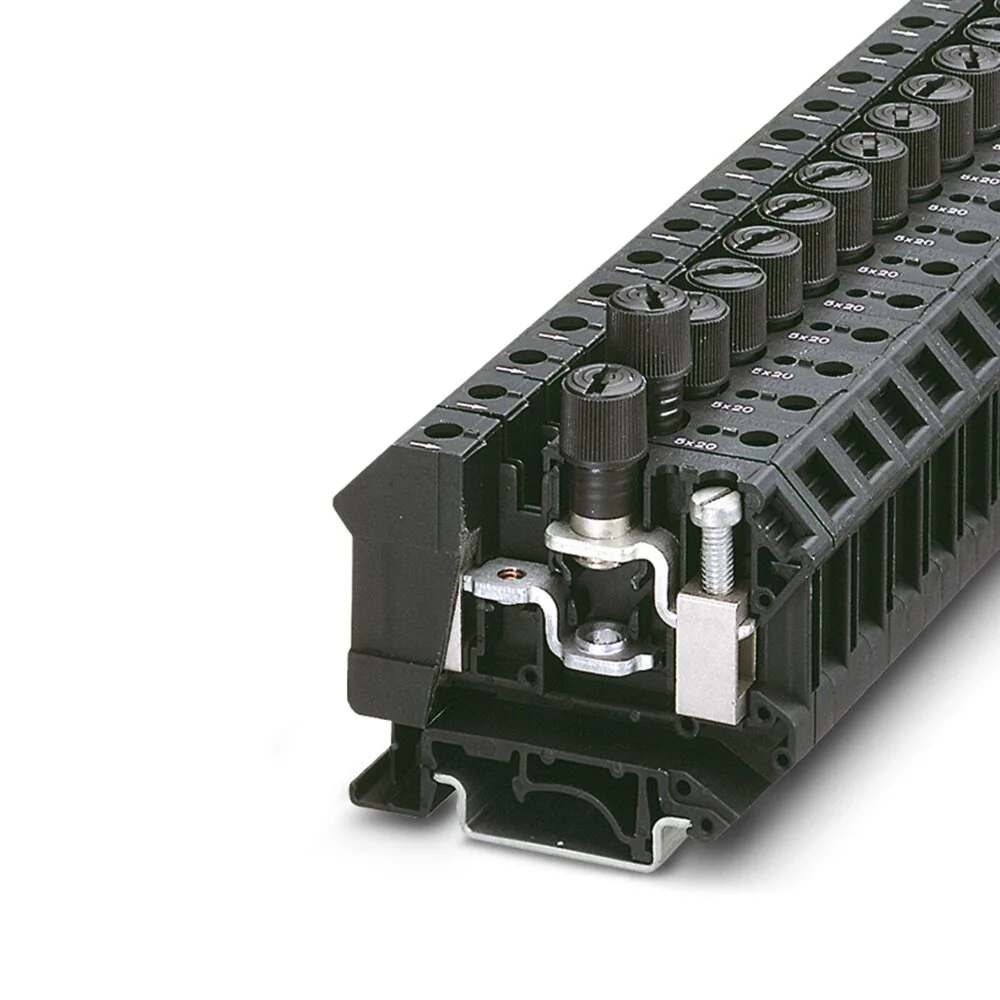

This fuse clamp with screw cap is suitable for fuses 5 x 20 mm. In addition, the clamp is also suitable for fuses with a telltale. Thanks to the viewing window of the screw cap, a tripped fuse can be quickly recognized. Phoenix Contact UK fuse row clamps are available in several variants.
Specifications
Type of fuse insert : Other
Type of fuse holder : Other
Type of indication element for defect indication : None
Supply voltage for defect-indication (V) : 0 V to 0 V
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.5 mm² to 16 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.5 mm² to 10 mm²
Connectable conductor cross section solid-core (mm²) : 0.5 mm² to 16 mm²
Connectable conductor cross section multi-wired (mm²) : 0.5 mm² to 4 mm²
Rated current In (A) : 10
Rated voltage (V) : 500
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Screw connection
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Other
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 12
Height (mm) : 62.038
Depth (mm) : 56.266
Closing plate required : No
Color : Black
