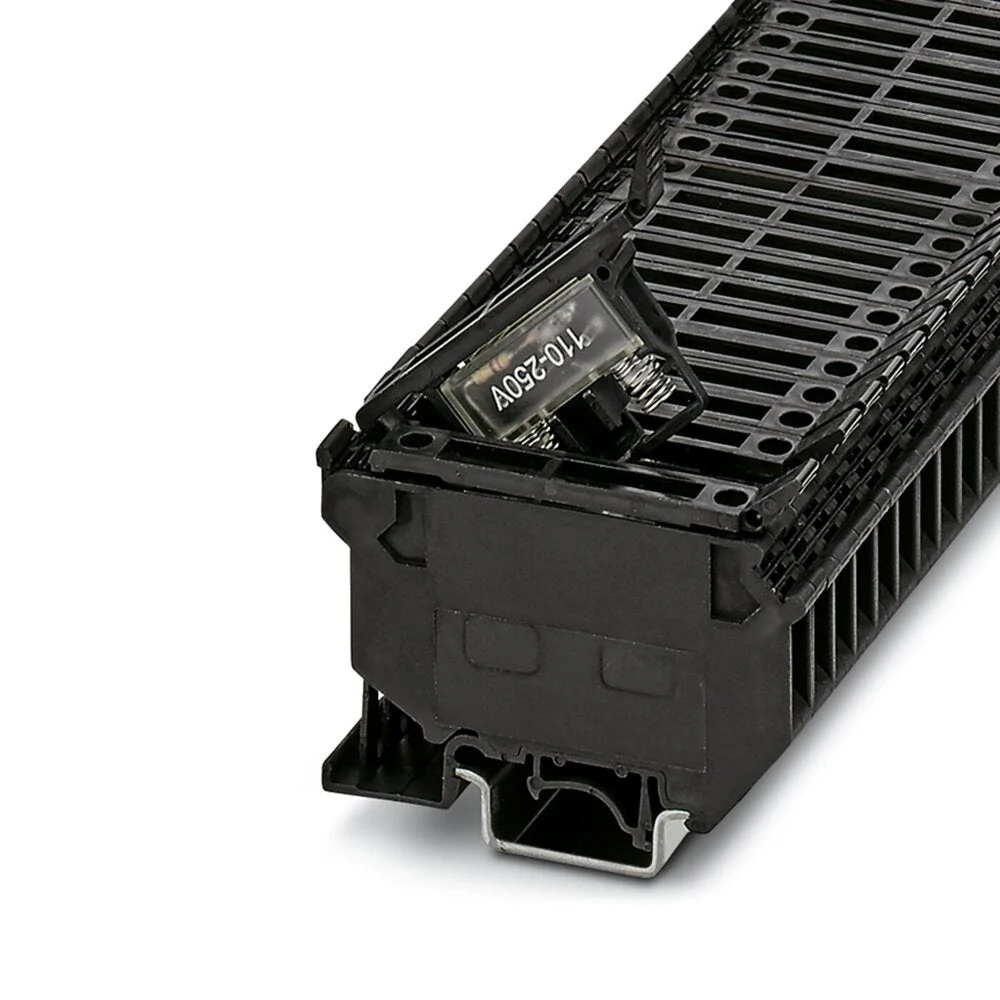

Phoenix Contact UK Fuse Clamp – 3004142

The fuse lever of this clamp locks in the end position. The clamp is generously codable. In addition, this Phoenix Contact fuse rail clamp is suitable for 5 mm glass fuses. Phoenix Contact UK fuse rail clamps are available in different variants.

Specifications

Type of fuse insert : G-fuse 5×30 mm
Type of fuse holder : Swivelling
Type of indication element for defect indication : Glow lamp
Supply voltage for defect-indication (V) : 110 V to 250 V
Voltage type for defect indication : AC
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.2 mm² to 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.25 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²) : 0.2 mm² to 4 mm²
Connectable conductor cross section multi-wired (mm²) : 0.2 mm² to 1.5 mm²
Rated current In (A) : 6.3
Rated voltage (V) : 800
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Screw connection
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Other
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 8.15
Height (mm) : 72.2
Depth (mm) : 55.55
Closing plate required : No
Color : Black
