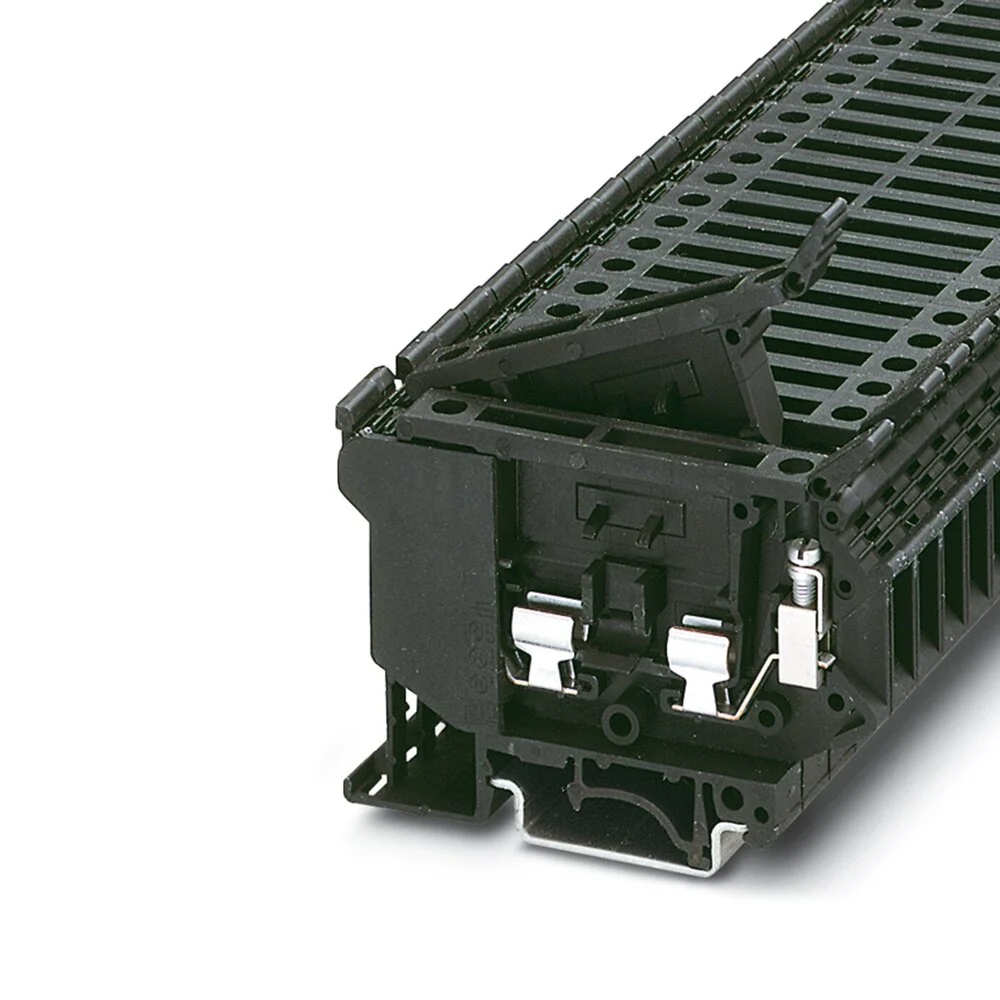

Phoenix contact, fused din rail terminals. The phoenix contact uk-5-hesi series of fuse modular terminal blocks offer excellent protection to electrical systems, protecting them against overcurrent and short-circuiting. Easily clipped onto din rail, the range is easily interchanged and therefore offers you greater flexibility with the part. Features and benefits. Large-surface labeling. Safety lever locked in end position. Hinged disconnect lever. Flip-open compartment to accommodate a fuse. Options to accommodate 5x20mm and 6.3x32mm fuses. Terminal width 8.2 (5x20mm), and 10.2 (6.3x32mm).
Specifications
Type of fuse insert : G-fuse 5×30 mm
Type of fuse holder : Swivelling
Type of indication element for defect indication : None
Supply voltage for defect-indication (V) : 0 V to 0 V
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.2 mm² to 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.25 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²) : 0.2 mm² to 4 mm²
Connectable conductor cross section multi-wired (mm²) : 0.2 mm² to 1.5 mm²
Rated current In (A) : 6.3
Rated voltage (V) : 800
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Screw connection
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Other
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 8.2
Height (mm) : 72.2
Depth (mm) : 55.55
Closing plate required : No
Color : Black
