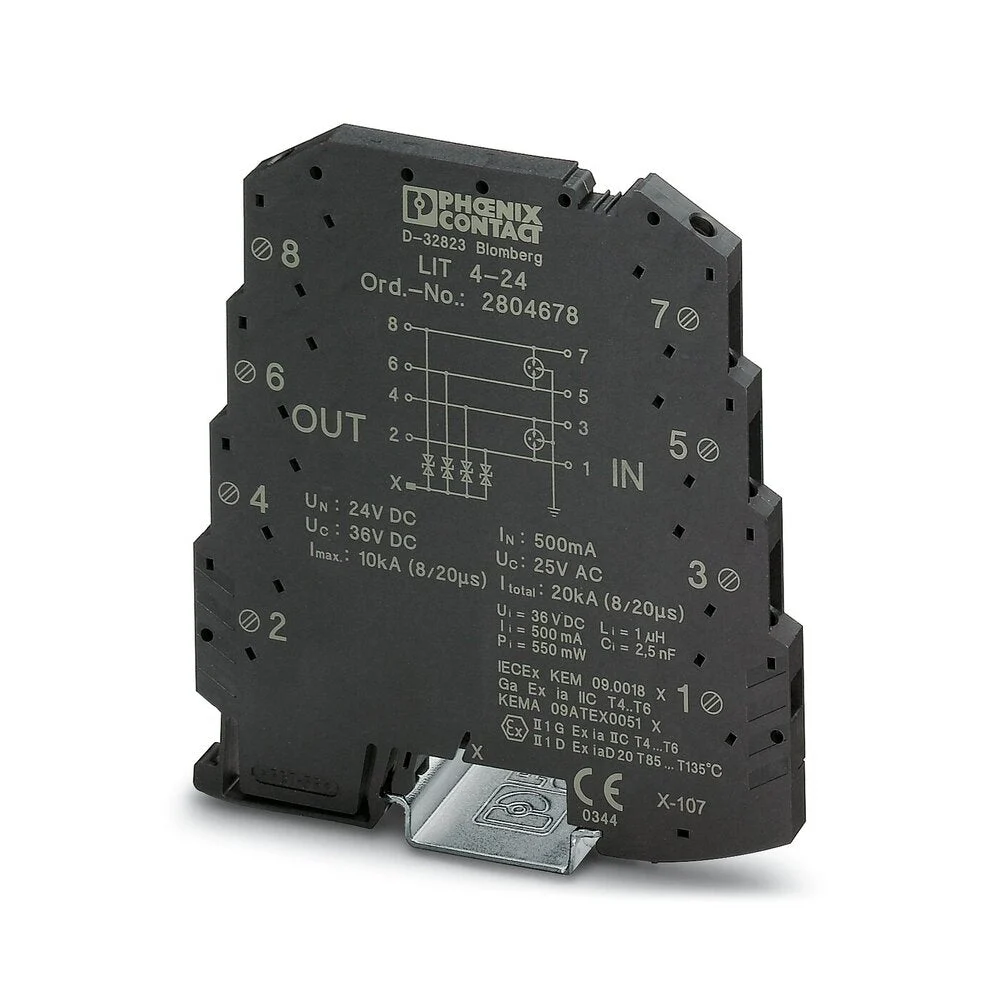

Phoenix Contact Surge Protector For Data/M&R – 2804678

Surge protection in one-piece 6.2 mm wide DIN rail module for four floating signal wires.

Specifications

Nominal voltage AC (V) : 24 V to 24 V
Nominal voltage DC (V) : 24 V to 24 V
Max. continuous voltage AC (V) : 25
Max. continuous voltage DC (V) : 36
Nominal discharge surge current (8/20) (kA) : 5
Nominal load current (A) : 0.5
Voltage protection level core/core (V) : 55
Voltage protection level core/earth (V) : 650
Voltage protection level core/signal ground (V) : 650
Limiting frequency (MHz) : 2.5
Mounting method : Other
Connection 1 : Clamp
Pro-active thermo-control : No
With remote signalling contact : No
Signalling at the device : None
Explosion-tested version : Yes
