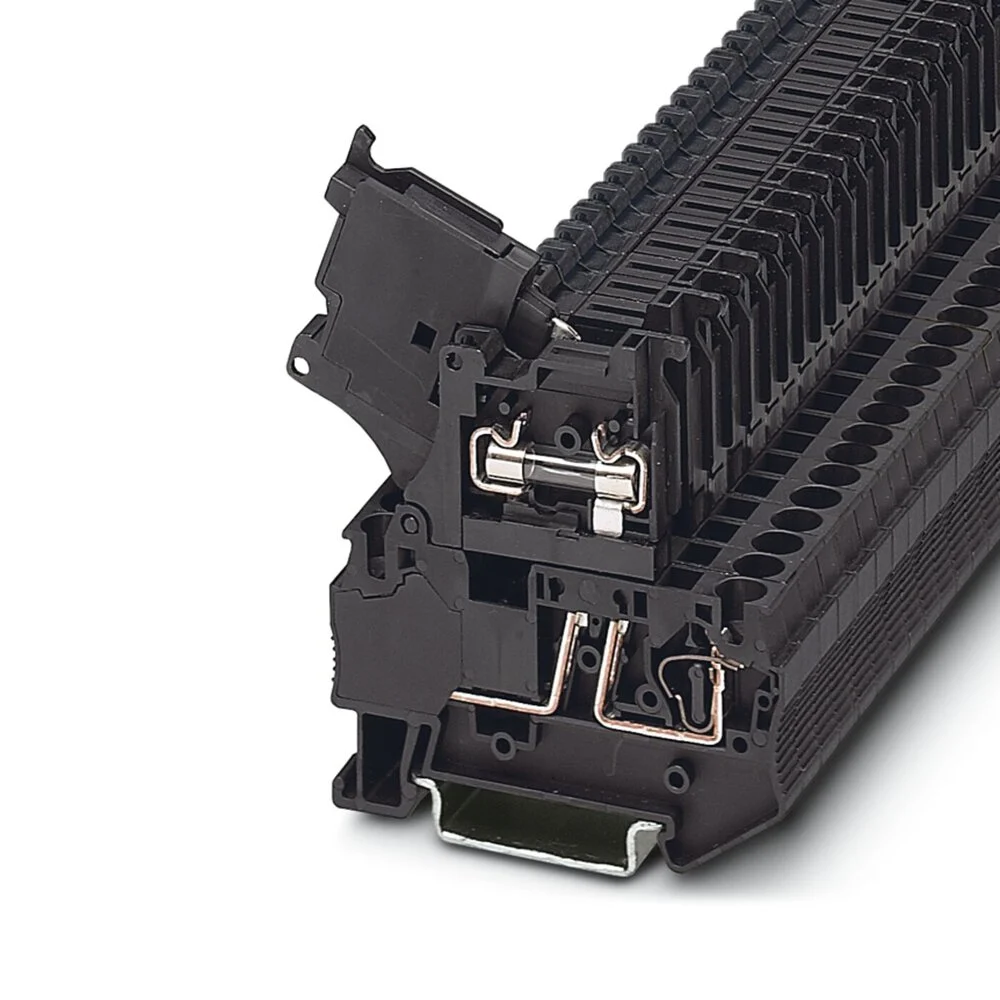

The front terminal offers user-friendly operation. Phoenix Contact spring-loaded terminals have generous connection space. In this way, conductors with and without ferrules equipped with insulation collars with nominal conductor cross sections can also be connected. In addition, this clamp is characterized by a compact design. With two function shafts, all tasks of potential distribution can be realized time-savingly. In addition, the skip-through connection allows, for example, two separate potentials to be fed side by side.
Specifications
Type of fuse insert : Other
Type of fuse holder : Other
Type of indication element for defect indication : None
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.08 mm² to 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.14 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²) : 0.08 mm² to 6 mm²
Connectable conductor cross section multi-wired (mm²) : 0.08 mm² to 4 mm²
Rated current In (A) : 6.3
Rated voltage (V) : 500
Type of electrical connection 1 : Spring clamp connection
Type of electrical connection 2 : Clip connection
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Other
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 6.15
Height (mm) : 61.5
Depth (mm) : 63.38
Closing plate required : No
Color : Black
