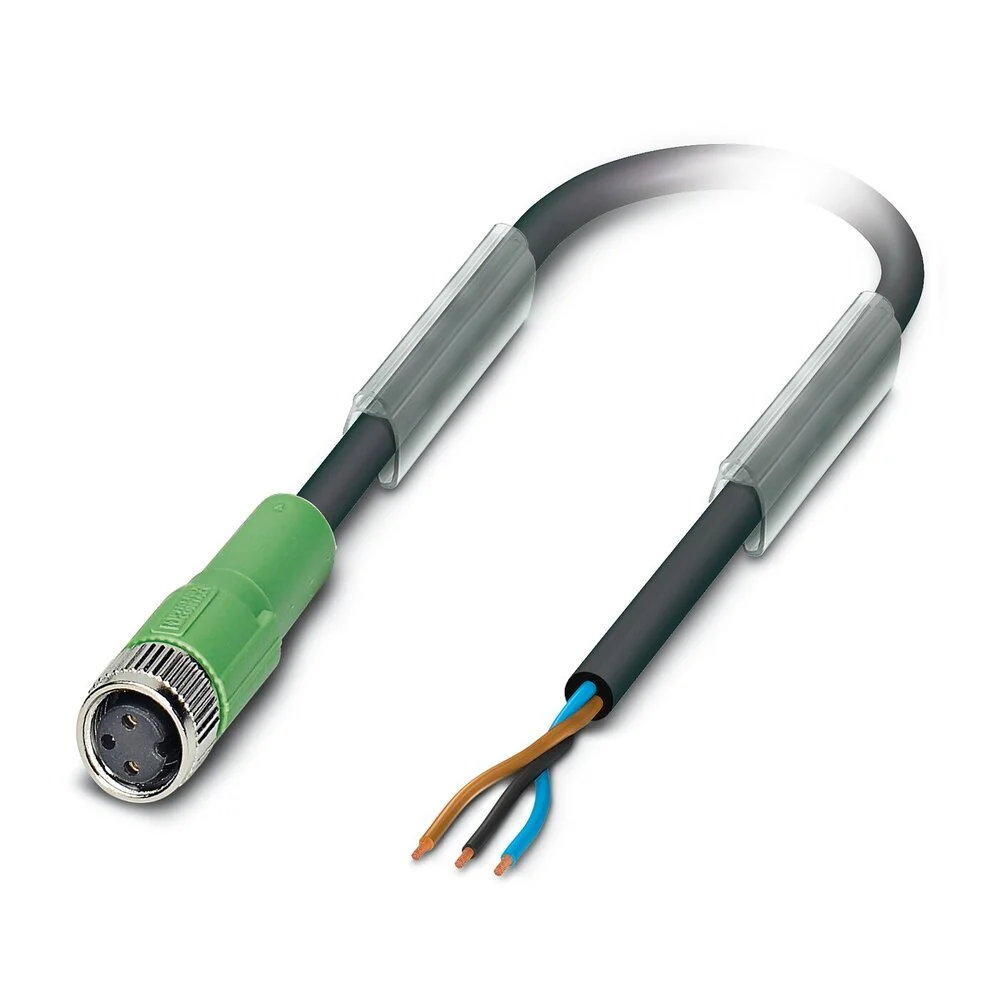

Phoenix Contact SAC Sensor/Actor Cable With Connector – 1669628

Sensor/actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket straight M8, cable length = 5 m.

Specifications

Number of poles : 3
Type of electrical connection, field-sided : Other
Type of plug-in contact, field sided : Female (bus)
Positioning cable feed, field-sided : Other
Type of electrical connection, box-sided : M8
Type of plug-in contact, box-sided : Female (bus)
Positioning cable feed, box-sided : Straight
Cable length (m) : 5
Material of cable sheath : Other
Halogen free : Yes
Color cable sheath : Other
With LED indication : No
Screened : No
Cable type : Multi-core
Vulcanize : No
Material contact body : CuSn
Material of contact surface : Other
Permitted cable outer temperature after assembling without vibration (°C) : -40 °C to 80 °C
Permitted cable outer temperature during assembling/handling (°C) : -25 °C to 80 °C
Rated current In (A) : 4
Rated voltage (V) : 48
Continuity resistor (mOhm) : 5000
Degree of protection (IP) : IP65
