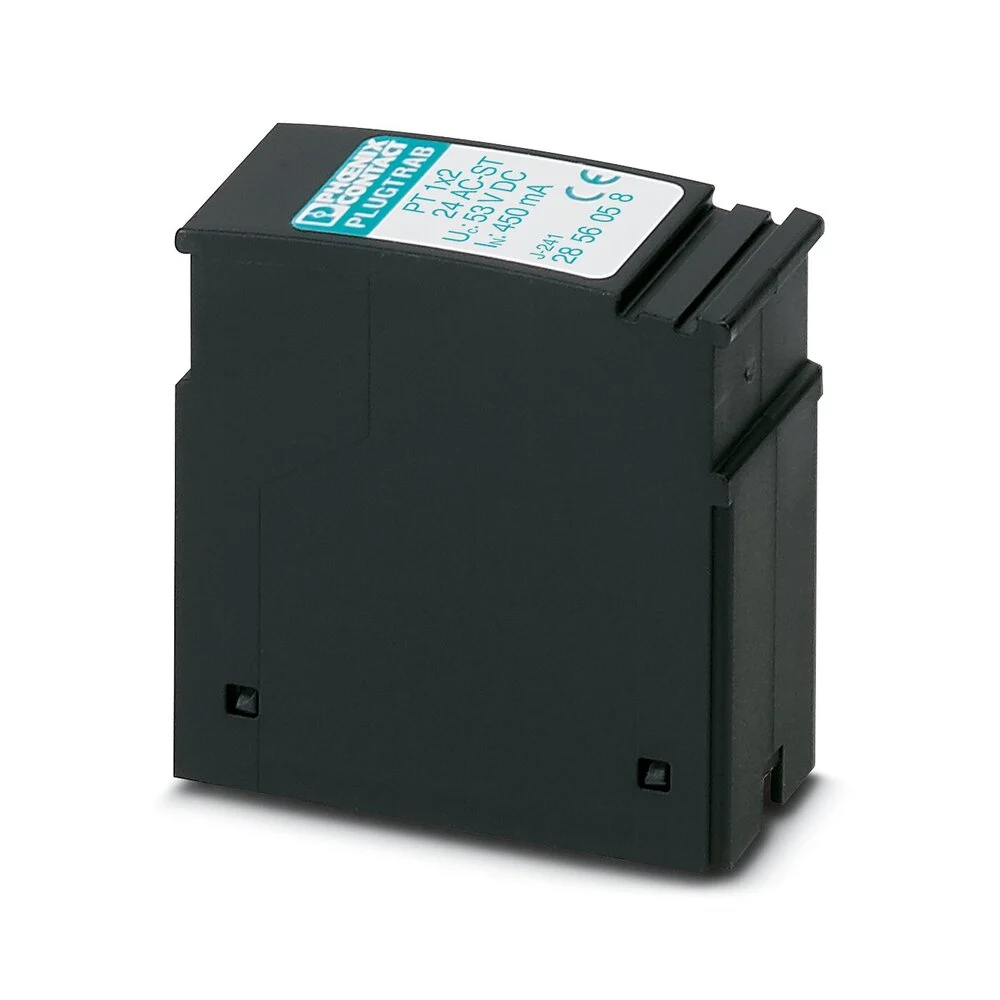

Phoenix Contact PT Surge Protector For Data/M&R – 2856058

Phoenix Contact PT surge protector v data/m&r, rated voltage DC 40V, other, rated voltage AC 24V, connection 1 other, limit frequency 3MHz, max continuous voltage AC 28V, max continuous voltage DC 40V, rated load current 0.45A, rated discharge surge current (8/20) 10kA.

Specifications

Nominal voltage AC (V) : 24 V to 24 V
Nominal voltage DC (V) : 24 V to 24 V
Max. continuous voltage AC (V) : 28
Max. continuous voltage DC (V) : 40
Nominal discharge surge current (8/20) (kA) : 10
Nominal load current (A) : 0.45
Voltage protection level core/core (V) : 80
Voltage protection level core/earth (V) : 450
Limiting frequency (MHz) : 3
Mounting method : Other
Connection 1 : Other
Pro-active thermo-control : No
With remote signalling contact : No
Signalling at the device : None
Explosion-tested version : No
