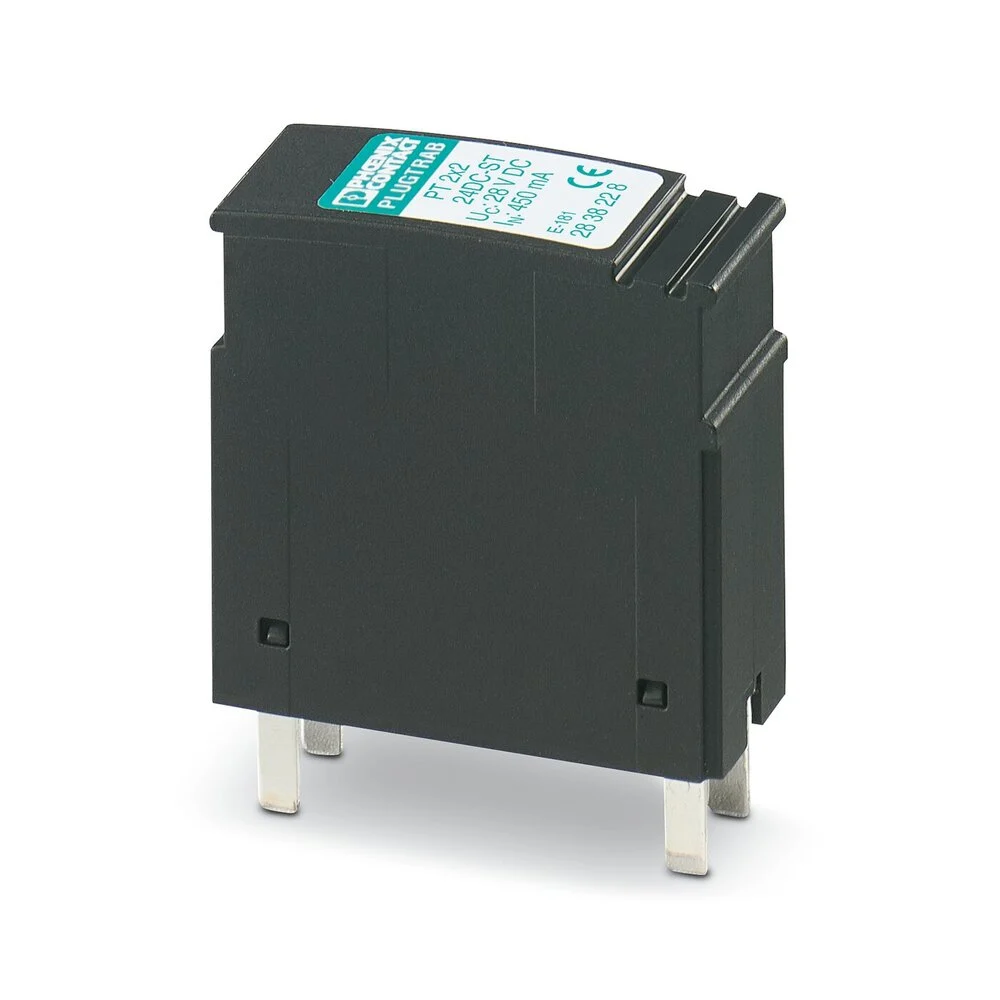

The phoenix contact’s surge protection plug has pt protective connector with protective circuit for two 2-wire floating signal circuits. Easy testing and documentation with checkmaster 2 with pluggable protective modules. Height 44.8 mm. Width 17.5 mm. Depth 51.7 mm. Mounting type on base element. Complete module height 90 mm. Complete module width 17.7 mm. Complete module depth 65.5 mm.
Specifications
Nominal voltage AC (V) : 20 V to 20 V
Nominal voltage DC (V) : 24 V to 24 V
Max. continuous voltage AC (V) : 20
Max. continuous voltage DC (V) : 28
Nominal discharge surge current (8/20) (kA) : 10
Nominal load current (A) : 0.45
Voltage protection level core/core (V) : 50
Voltage protection level core/earth (V) : 450
Limiting frequency (MHz) : 1.5
Mounting method : Other
Connection 1 : Other
Pro-active thermo-control : No
With remote signalling contact : No
Signalling at the device : None
Explosion-tested version : No
