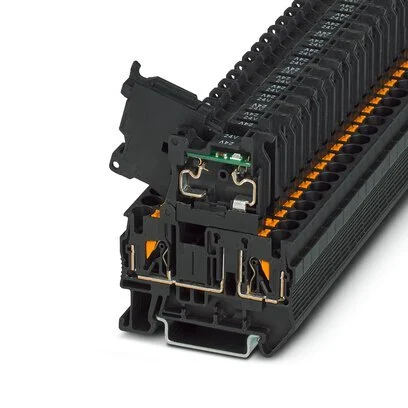

This fuse row clamp can be inserted directly without tools, with up to 50% lower insertion forces. The integrated control knob of the fuse clamp allows disconnection of conductors or connection of small cross sections from 0.14 mm² with any tool, easily and without direct contact with live parts. In addition, this clamp is characterized by a compact design. With two function shafts, all potential distribution tasks can be accomplished in a time-saving manner.
Specifications
Type of fuse insert : Other
Type of fuse holder : Other
Type of indication element for defect indication : LED
Supply voltage for defect-indication (V) : 12 V to 30 V
Voltage type for defect indication : AC/DC
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.2 mm² to 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.25 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²) : 0.2 mm² to 6 mm²
Connectable conductor cross section multi-wired (mm²) : 0.2 mm² to 4 mm²
Rated current In (A) : 6.3
Rated voltage (V) : 24
Type of electrical connection 1 : Other
Type of electrical connection 2 : Other
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Other
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 6.15
Height (mm) : 55.9
Depth (mm) : 63.38
Closing plate required : Yes
Color : Black
