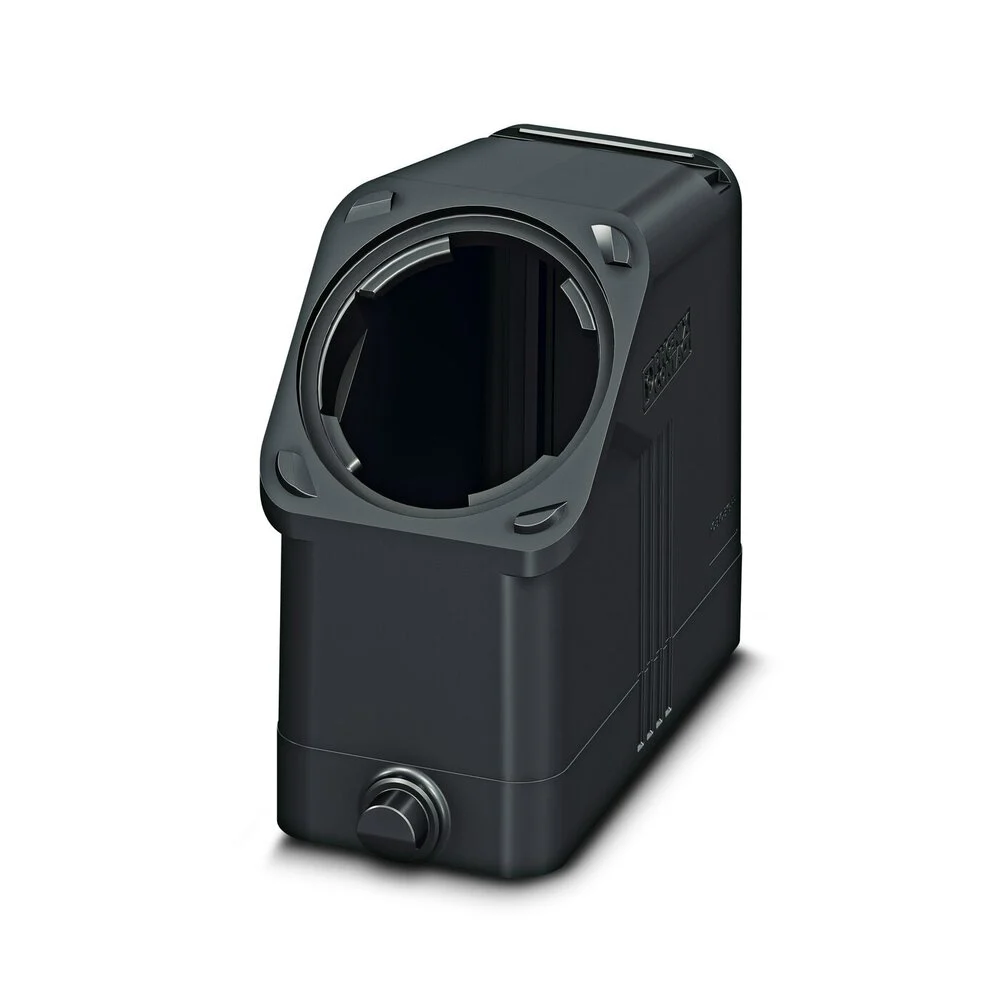

Sleeve housing b16, for single locking latch, material: pa, cable outlets: 1, straight/lateral, height: 78 mm, cable gland: none, support sleeve: no, standard. Labeling option using 9 x 20 mm marking label. Flexible cable outlet direction, lateral or straight. Lower costs than metal version. Low weight. Lower risk of condensation. Both contact insert pe sheets are connected by means of a metal frame integrated in the sleeve housing. Metal inlays ensure leading pe contact with angled plugs. Marking label can be attached. Completely corrosion-resistant. Halogen-free plastic.
Specifications
Width (mm) : 44
Height (mm) : 78
Depth (mm) : 93.5
Type of housing : Plug case
Material : Other
Coating housing : Other
Color housing : Black
Position cable feed : Other
Position of the shackle : None
With cable screw gland : No
Mounting method of the cable gland : Bayonet
With hinged lid : No
With distance piece : No
With sealing : No
Number of conduit inlets : 1
Locking mechanism : Single locking lever
Inflammability class of insulation material according to with UL94 : Other
Operating temperature (°C) : -40 °C to 125 °C
EMC-version : No
Corrosion resistant : No
UV resistant : No
Degree of protection (IP), mounted : IP66
Impact strength : IK08
