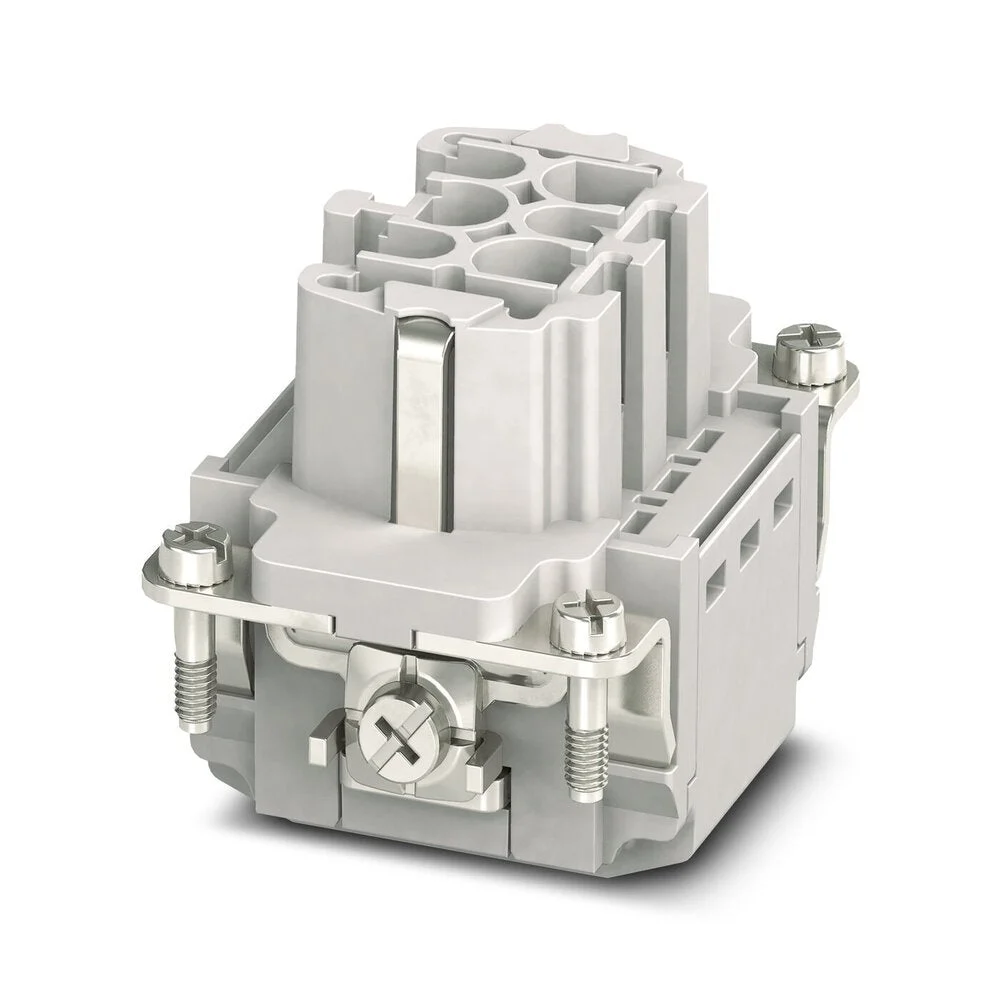

Heavycon socket insert, b6 series, 6 + pe-pos., push-in connection. For fast coding with plastic profile. Significant time savings during conductor connection. Conductor connection without tools. Test connection for 2 mm test plug.
Specifications
Number of power contacts : 6
Number of control contacts : 0
Contact insert without contacts : No
Contact type : Bus
Number of poles : 6
Diameter plug-in contact (mm) : 2.5
Material connector insert : Thermoplastic
Rated current In (A) : 16
Ambient temperature (°C) : 125 °C to 125 °C
Operating temperature (°C) : -40 °C to 125 °C
Rated voltage (V) : 500
Rated surge voltage (kV) : 6
Over voltage category : III
Pollution degree : 3
Electrical connection : Spring clamp connection
With wire protection : No
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.14 mm² to 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.14 mm² to 2.5 mm²
Connectable conductor cross section solid-core (mm²) : 0.14 mm² to 2.5 mm²
Connectable conductor cross section multi-wired (mm²) : 0.14 mm² to 2.5 mm²
Material of contact surface : Other
Material of contact insert : Thermoplastic
Material contact : Other copper alloys
Inflammability class of insulation material according to with UL94 : V0
With protective conductor : Yes
Min. number of insertion cycles : 500
Width (mm) : 34
Height (mm) : 37
Depth (mm) : 50.5
