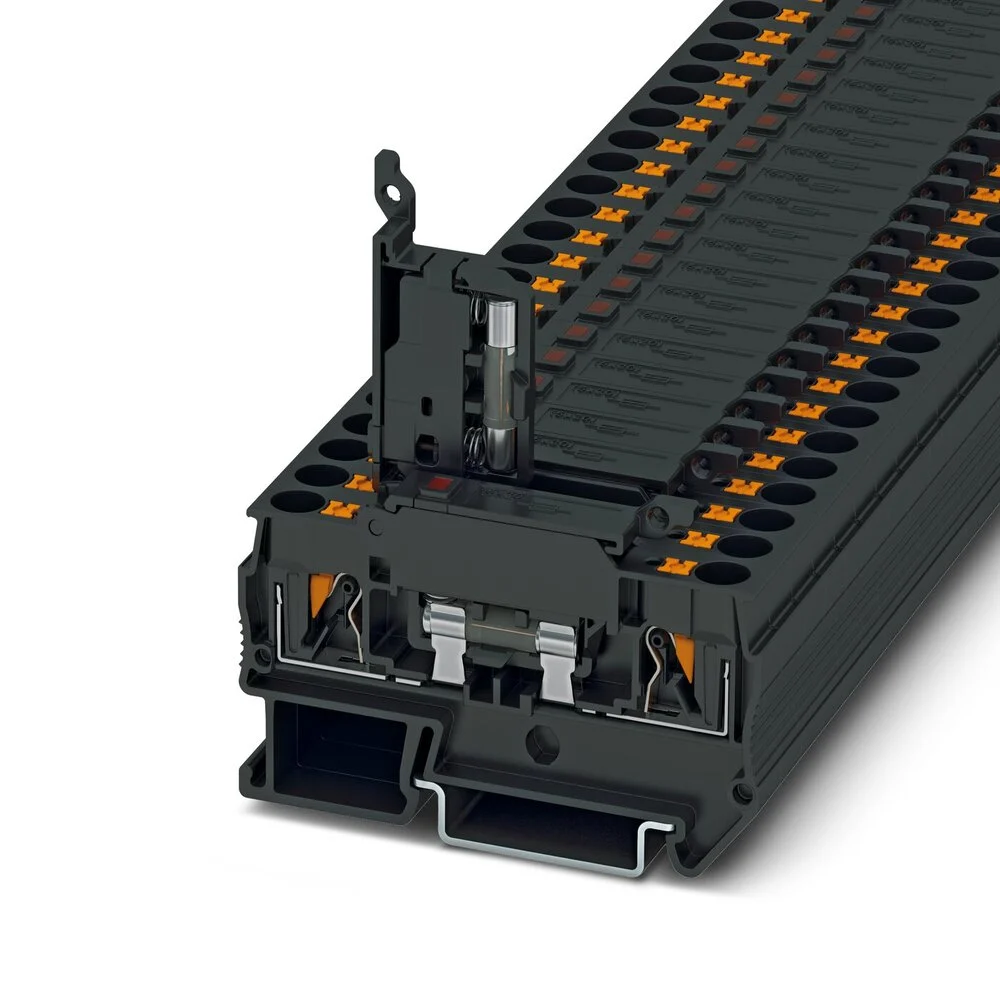

Phoenix Contact Fuse Clamp – 3270203

The phoenix contact fuse modular terminal block with push-in connection works with a nominal voltage of 24v and nominal current of 6.3 a. 0.2mm² to 6mm² cross section. 24 to 10awg wire size. -60°c to 85°c ambient operating temperature. This article is apart of phoenix contact’s entire ‘complete line’ range. Complete line from phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at complete line page.

Specifications

Type of fuse insert : Other
Type of fuse holder : Other
Supply voltage for defect-indication (V) : 12 V to 30 V
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.2 mm² to 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.25 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²) : 0.2 mm² to 6 mm²
Connectable conductor cross section multi-wired (mm²) : 0.2 mm² to 4 mm²
Rated current In (A) : 6.3
Rated voltage (V) : 24
Type of electrical connection 1 : Other
Type of electrical connection 2 : Other
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Other
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 8.15
Height (mm) : 67.8
Depth (mm) : 41.52
Closing plate required : Yes
Color : Black
