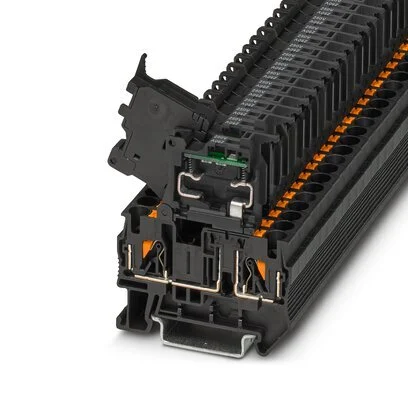

Phoenix Contact Fuse Clamp – 3211907

Lever-type fuse terminal block, color = black, for 5 x 20 mm G fuse inserts, with LED for 250 V AC.

Specifications

Type of fuse insert : Other
Type of fuse holder : Other
Supply voltage for defect-indication (V) : 110 V to 250 V
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.2 mm² to 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.25 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²) : 0.2 mm² to 6 mm²
Connectable conductor cross section multi-wired (mm²) : 0.2 mm² to 4 mm²
Rated current In (A) : 6.3
Rated voltage (V) : 250
Type of electrical connection 1 : Other
Type of electrical connection 2 : Other
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Other
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 6.15
Height (mm) : 55.9
Depth (mm) : 63.38
Closing plate required : Yes
Color : Black
