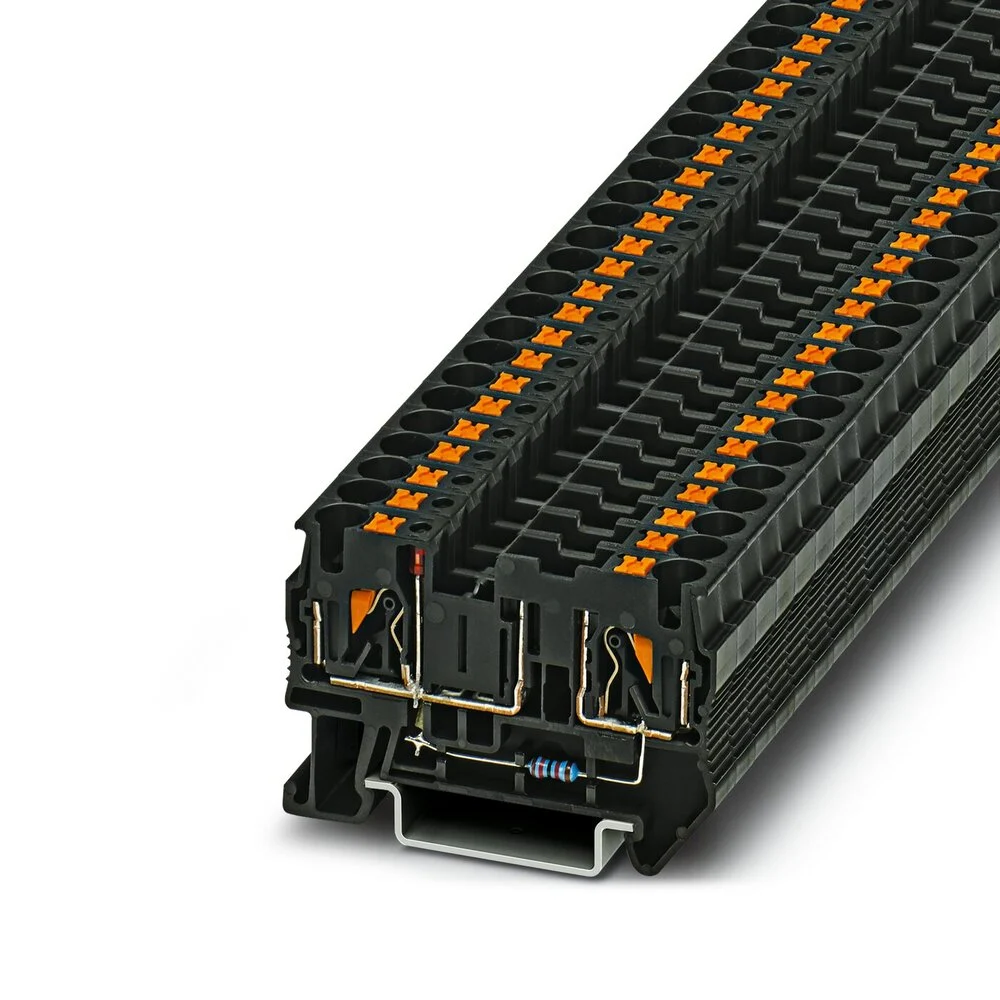

Fuse modular terminal block, fuse type = Flat, fuse type = Type F (miniature), nom. Voltage = 24 V, nominal current = 10 A, connection method = Push-in connection, 1 level, Rated cross section = 4 mm2, cross section = 0.2 mm2- 6 mm2, mounting type = NS 35/7,5, NS 35/15, color = black.
Specifications
Type of fuse insert : Blade fuse
Type of fuse holder : Pluggable
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.2 mm² to 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.25 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²) : 0.2 mm² to 6 mm²
Connectable conductor cross section multi-wired (mm²) : 0.2 mm² to 4 mm²
Rated current In (A) : 10
Rated voltage (V) : 24
Type of electrical connection 1 : Other
Type of electrical connection 2 : Other
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Other
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 6.15
Height (mm) : 55.9
Depth (mm) : 35.25
Closing plate required : Yes
Color : Black
