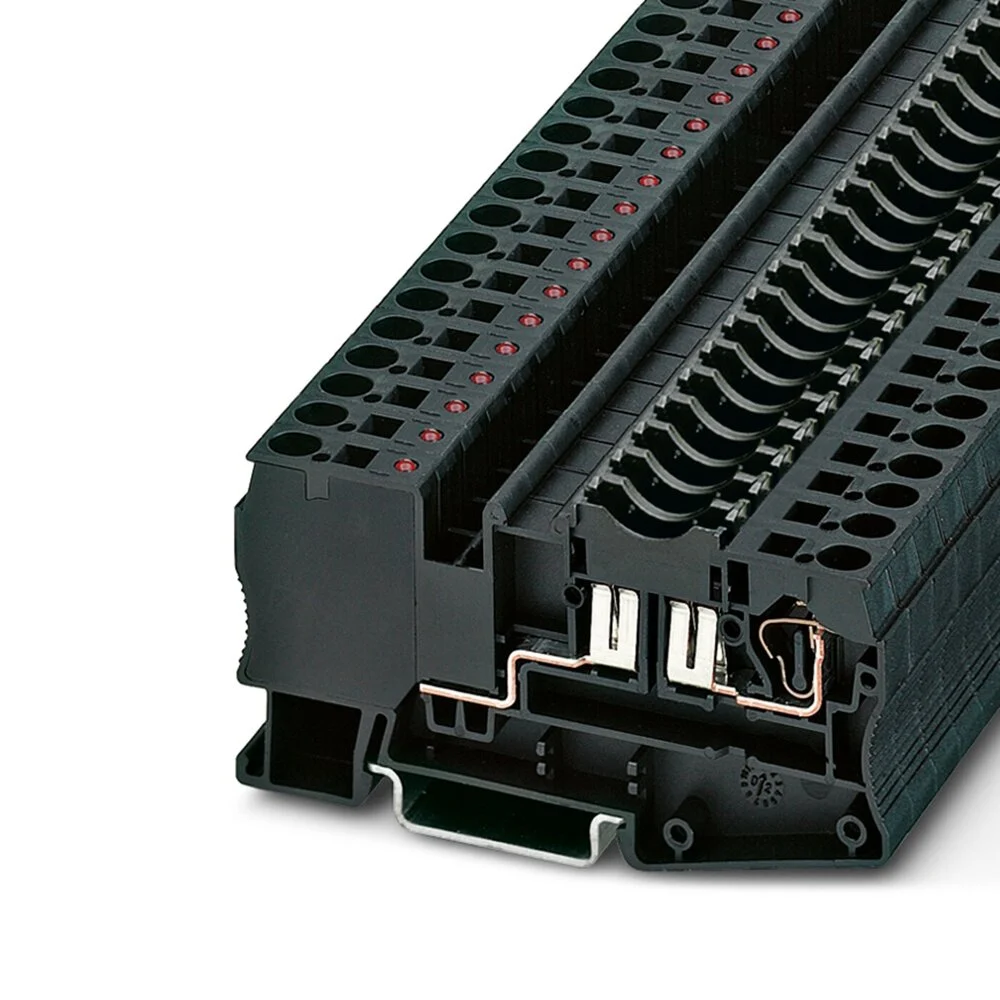

Phoenix Contact Fuse Clamp – 3036505

St 4-fsi/c din rail terminal blocks – phoenix contact. The st 4-fsi/c range from phoenix contact are din rail, spring-cage terminal blocks that feature a c type fuse. This range of din rail, fused terminal blocks form a tight connection to your wire thanks to the spring-cage technology, it also means an effortless install! simply push-in your wire. Not to mention, the fuse in this terminal block is a flat fuse and helps add another level of protection. Din rails ns 35/7.5 and ns 35/15 are supported for the st 4-fsi/c range of terminal blocks and the blocks have a nominal current of 30 a with a.

Specifications

Type of fuse insert : Blade fuse
Type of fuse holder : Pluggable
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.08 mm² to 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.14 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²) : 0.08 mm² to 6 mm²
Connectable conductor cross section multi-wired (mm²) : 0.08 mm² to 4 mm²
Rated current In (A) : 30
Rated voltage (V) : 24
Type of electrical connection 1 : Spring clamp connection
Type of electrical connection 2 : Clip connection
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Other
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 8.15
Height (mm) : 86.5
Depth (mm) : 44.05
Closing plate required : No
Color : Black
