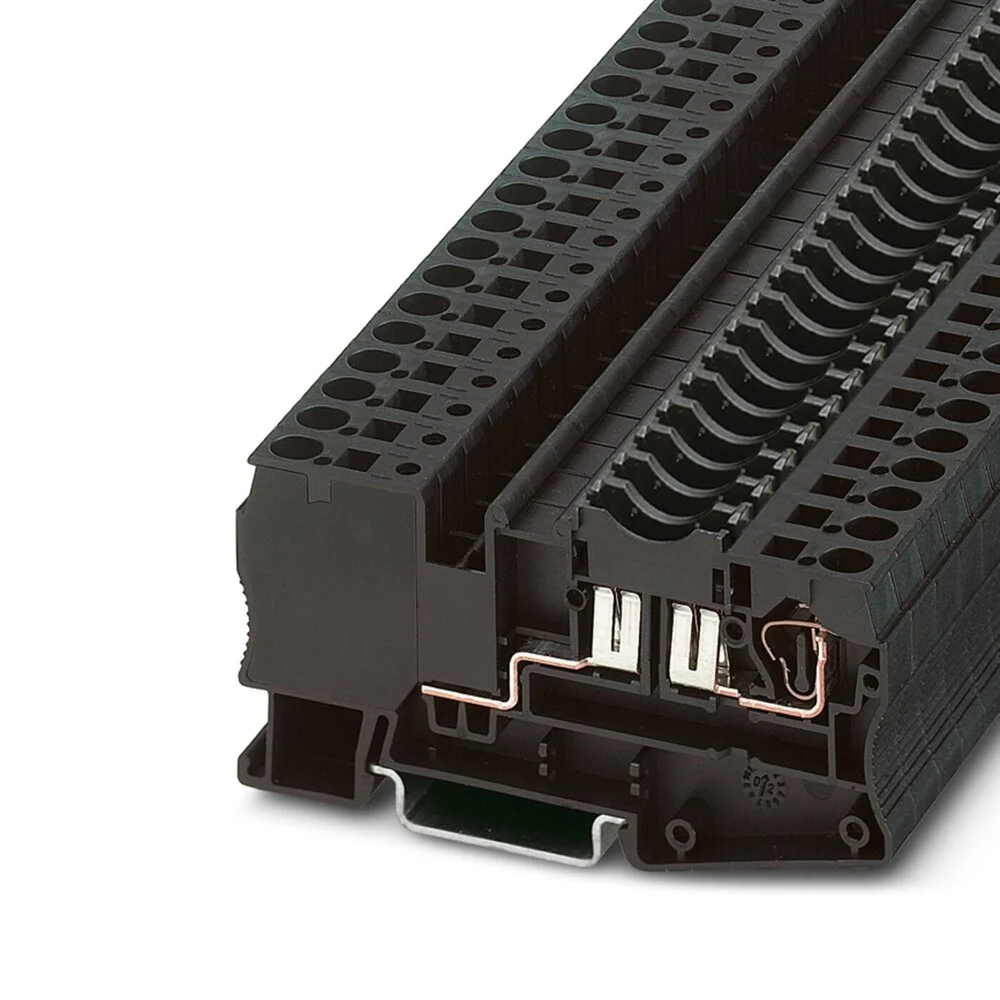

Fuse modular terminal block, fuse type = Flat, fuse type = C, nom. Voltage = 400 V, nominal current = 30 A, connection method = Spring-cage connection, 1 level, Rated cross section = 4 mm2, cross section = 0.08 mm2- 6 mm2, mounting type = NS 35/7,5, NS 35/15, color = black.
Specifications
Type of fuse insert : Blade fuse
Type of fuse holder : Pluggable
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.08 mm² to 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.14 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²) : 0.08 mm² to 6 mm²
Connectable conductor cross section multi-wired (mm²) : 0.08 mm² to 4 mm²
Rated current In (A) : 30
Rated voltage (V) : 400
Type of electrical connection 1 : Spring clamp connection
Type of electrical connection 2 : Clip connection
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Other
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 8.15
Height (mm) : 86.5
Depth (mm) : 44.05
Closing plate required : No
Color : Black
