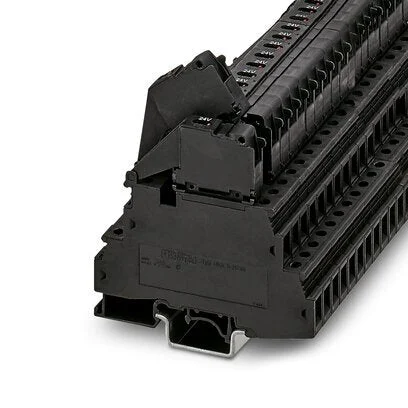

Phoenix Contact fuse row terminal, black, (WxDxH) 8.2×86.5x84mm, fuse pattern design other, supply voltage for fault indica 15 – 30V, DIN rail 35mm, fuse holder design (pattern swiveling, nom. (measuring) current In 32A, connectable conductor cross-section duck 0.2mm².
Specifications
Type of fuse insert : Other
Type of fuse holder : Other
Supply voltage for defect-indication (V) : 15 V to 30 V
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.2 mm² to 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.25 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²) : 0.2 mm² to 4 mm²
Connectable conductor cross section multi-wired (mm²) : 0.2 mm² to 1.5 mm²
Rated current In (A) : 32
Rated voltage (V) : 24
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Screw connection
Number of levels : 2
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Other
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 8.15
Height (mm) : 86.55
Depth (mm) : 78
Closing plate required : No
Color : Black
