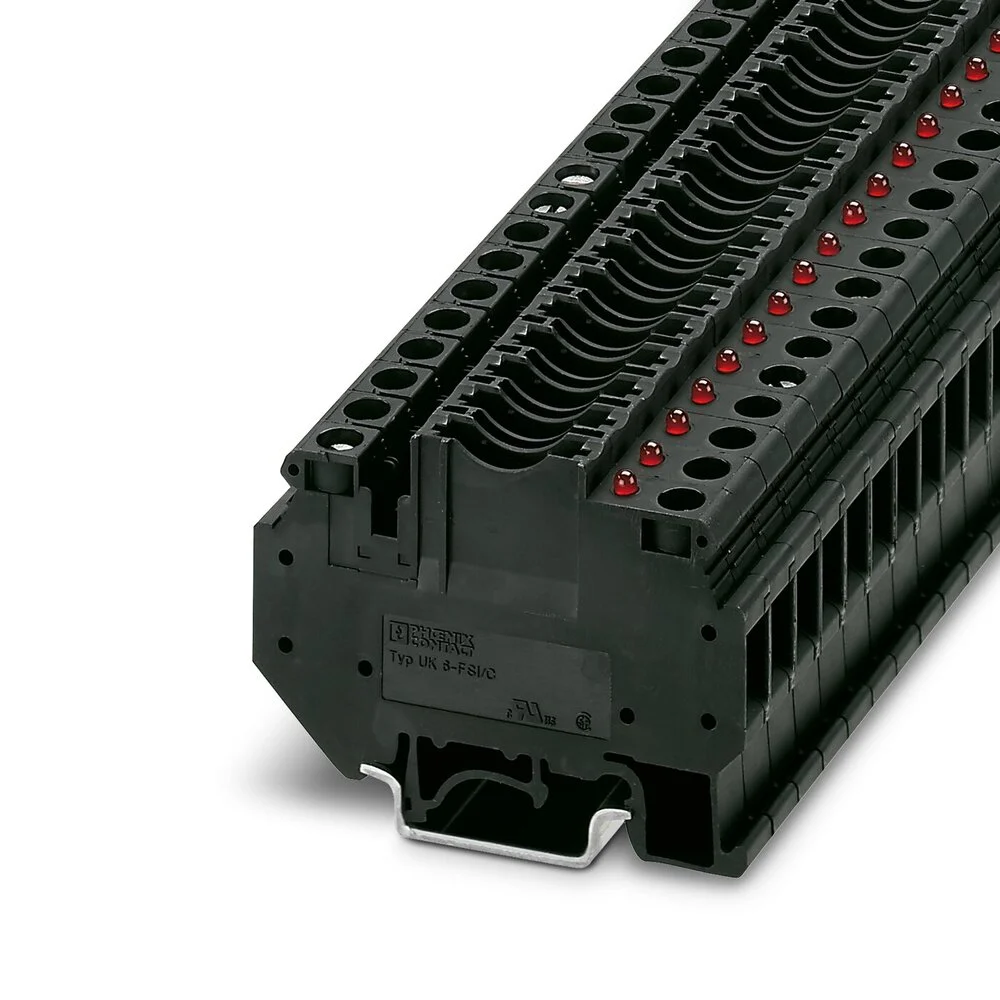

Tb series. Phoenix contact black fuse terminal block, 24 to 8 awg – uk 6-fsi/c-led24 – 3001938. You can use this phoenix contact fuse terminal block to secure two or more wires together as part of your pcbs (printed circuit boards). it’s particularly useful for connecting your wiring to ground. This pcb block is fused, which offers additional protection to your electronics equipment. Any excess voltage will cause the fuse to blow, breaking the circuit and insulating the rest of your components from damage.
Specifications
Type of fuse insert : Blade fuse
Type of fuse holder : Pluggable
Type of indication element for defect indication : Other
Supply voltage for defect-indication (V) : 0 V to 0 V
Voltage type for defect indication : AC
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.2 mm² to 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.25 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²) : 0.2 mm² to 10 mm²
Connectable conductor cross section multi-wired (mm²) : 0.2 mm² to 2.5 mm²
Rated current In (A) : 30
Rated voltage (V) : 24
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Screw connection
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Other
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 8.15
Height (mm) : 64.2
Depth (mm) : 46.728
Closing plate required : No
Color : Black
