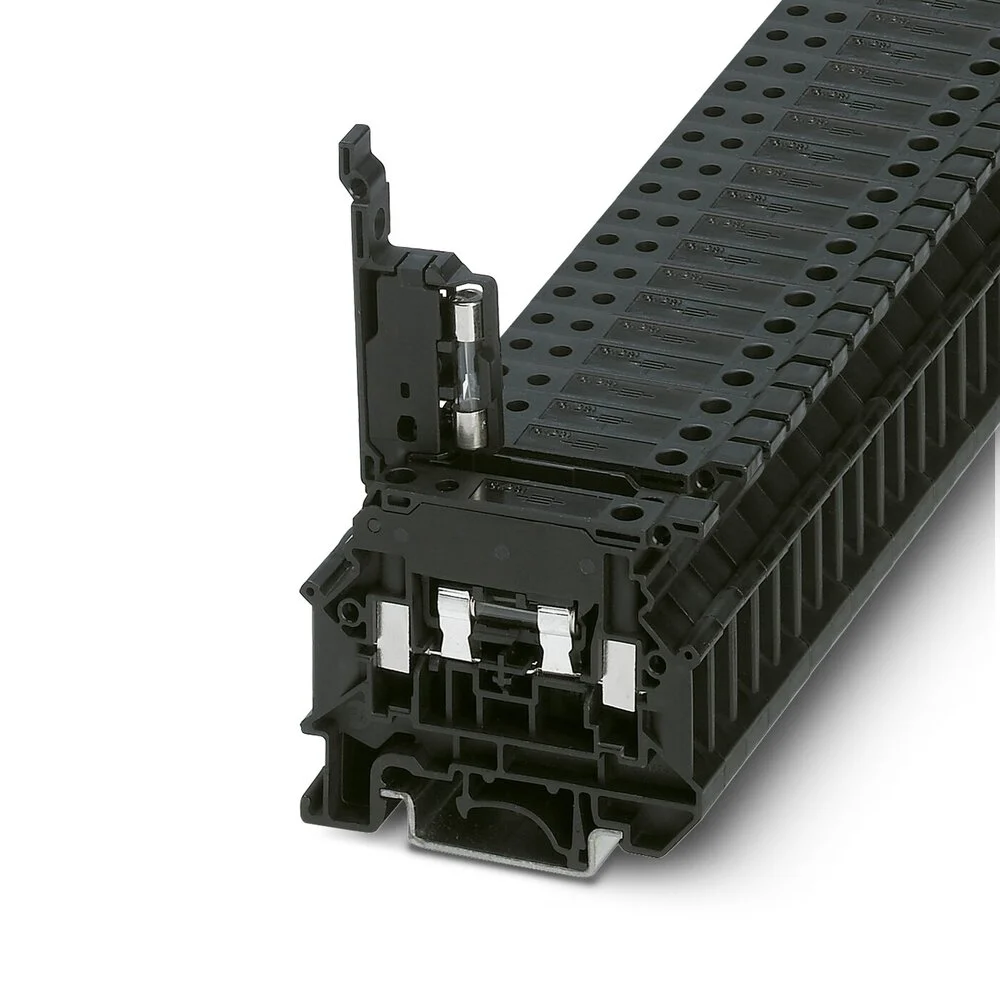

Fuse modular terminal block, fuse type = Glass / ceramics / . , fuse type = G / 5 x 20, nom. Voltage = 500 V, nominal current = 6.3 A, number of positions = 1, connection method = Screw connection, Rated cross section = 1.5 mm2, cross section = 0.2 mm2- 6 mm2, mounting type = NS 35/7,5, NS 35/15, NS 32, color = black.
Specifications
Type of fuse insert : Other
Type of fuse holder : Other
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.2 mm² to 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.25 mm² to 2.5 mm²
Connectable conductor cross section solid-core (mm²) : 0.2 mm² to 6 mm²
Connectable conductor cross section multi-wired (mm²) : 0.2 mm² to 1.5 mm²
Rated current In (A) : 6.3
Rated voltage (V) : 500
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Screw connection
Number of levels : 1
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Other
Operating temperature (°C) : 105 °C to 105 °C
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 8.15
Height (mm) : 58
Depth (mm) : 48.85
Closing plate required : Yes
Color : Black
