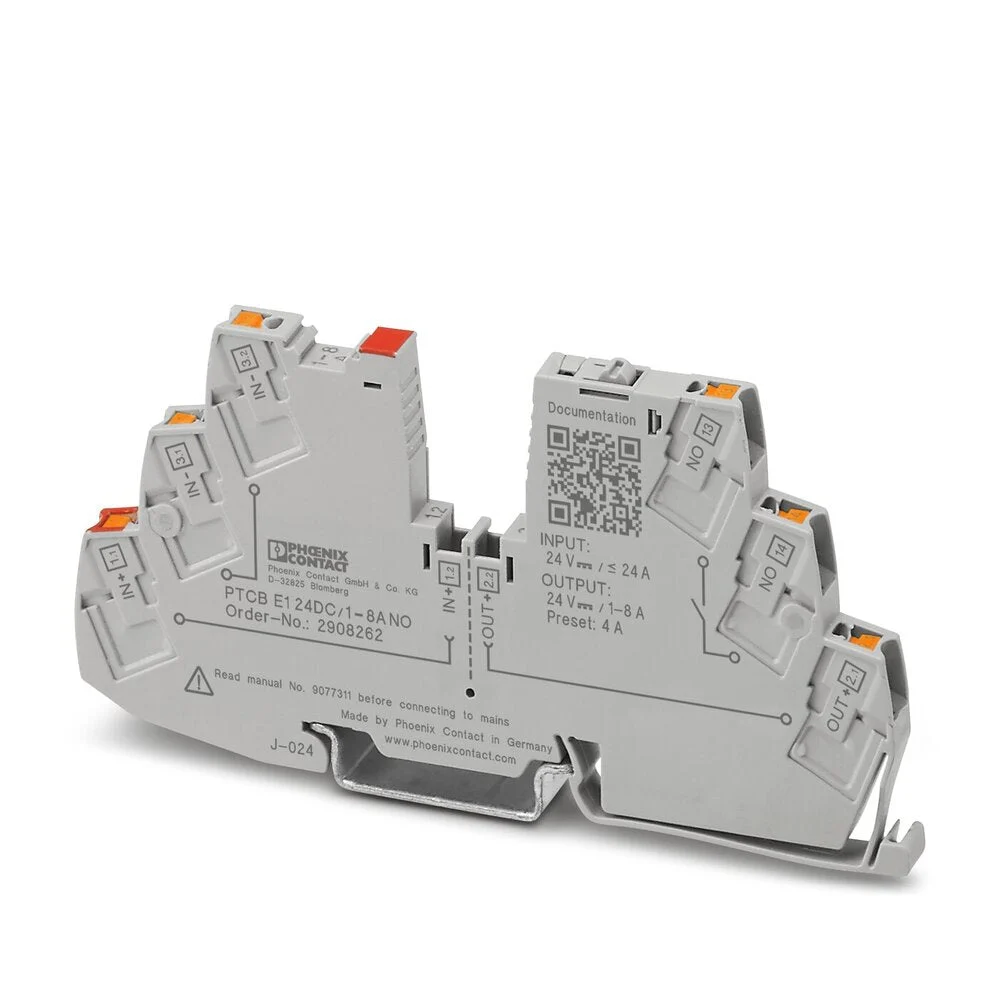

1-channel, electronic circuit breaker for protecting loads at 24 V DC against overload and short circuit. Easy potential distribution with components from the CLIPLINE complete terminal block system. With electronic interlock of the set nominal currents. For installation on DIN rails.
Specifications
Type of fuse insert : Mini circuit breaker
Type of fuse holder : Other
Type of indication element for defect indication : None
Supply voltage for defect-indication (V) : 0 V to 30 V
Voltage type for defect indication : DC
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.2 mm² to 2.5 mm²
Connectable conductor cross section solid-core (mm²) : 0.2 mm² to 4 mm²
Rated current In (A) : 24
Type of electrical connection 1 : Other
Number of levels : 2
Mounting method : Other
Material insulation body : Other
Inflammability class of insulation material according to with UL94 : Other
Width (mm) : 6.2
Height (mm) : 105.8
Depth (mm) : 55.6
Closing plate required : No
