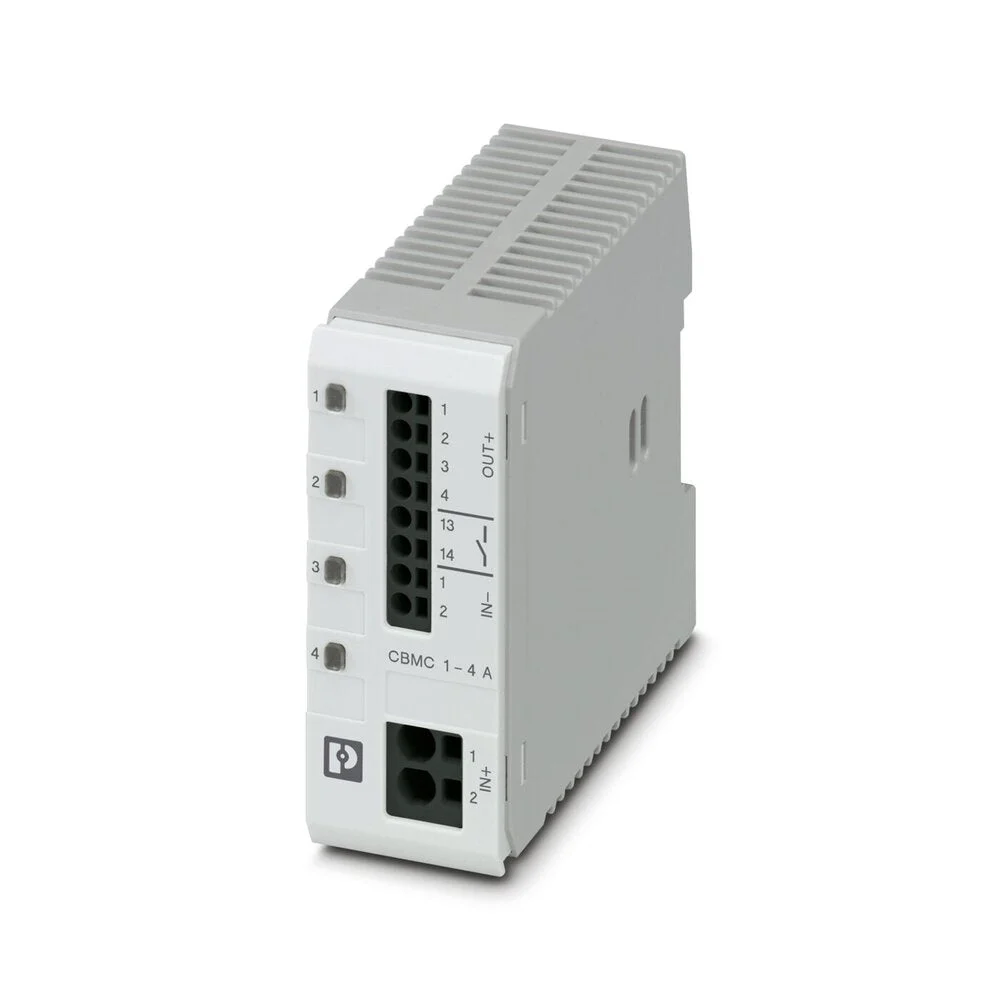

Phoenix Contact Fuse Clamp – 2906031

Multi-channel electronic circuit breaker for protecting four loads at 24 V DC in the event of overload and short circuit. With electronic locking of the set nominal currents. For installation on DIN rails.

Specifications

Type of fuse insert : Mini circuit breaker
Type of fuse holder : Other
Type of indication element for defect indication : LED
Supply voltage for defect-indication (V) : 0 V to 30 V
Voltage type for defect indication : DC
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.25 mm² to 6 mm²
Connectable conductor cross section solid-core (mm²) : 0.2 mm² to 10 mm²
Connectable conductor cross section multi-wired (mm²) : 0 mm² to 0 mm²
Rated current In (A) : 40
Type of electrical connection 1 : Other
Type of electrical connection 2 : Spring clamp connection
Number of levels : 1
Mounting method : Other
Material insulation body : Other
Inflammability class of insulation material according to with UL94 : Other
Width (mm) : 36
Height (mm) : 90
Depth (mm) : 98
Closing plate required : No
