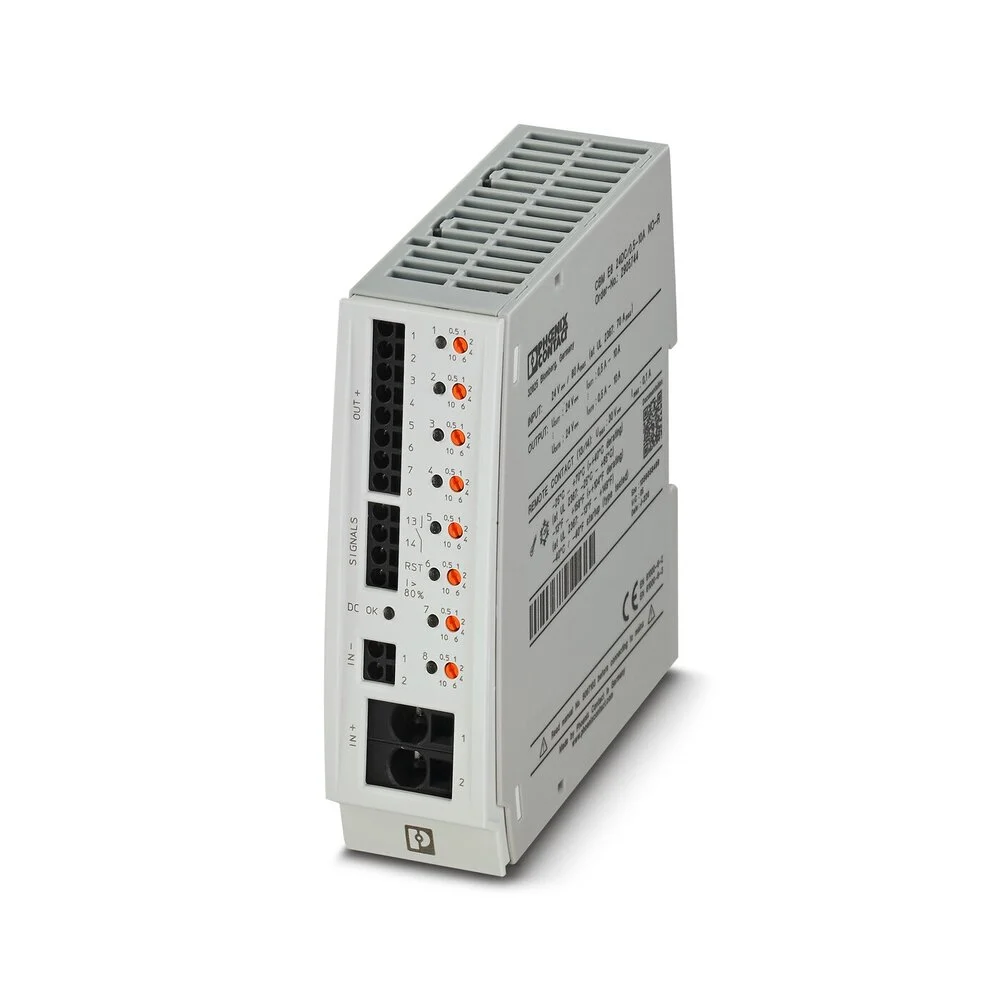

Phoenix contact electronic circuit breakers. Electronic device circuit breaker cb series. Compact design with precise nominal current levels. Modular expansion possible thanks to the uniform, plug-in housing concept. Active current limitation, even when switching capacitive loads. N/o contact for remote signaling of the operating state. Multi-channel electronic device circuit breaker cbm series. With active current limitation for protecting four loads at 24 v dc in the event of overload and short circuit. Precise nominal current levels of 0.5 to 10 a. Integrated dynamic current limitation.
Specifications
Type of fuse insert : Mini circuit breaker
Type of fuse holder : Other
Type of indication element for defect indication : LED
Supply voltage for defect-indication (V) : 0 V to 30 V
Voltage type for defect indication : DC
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.75 mm² to 16 mm²
Connectable conductor cross section solid-core (mm²) : 0.75 mm² to 16 mm²
Connectable conductor cross section multi-wired (mm²) : 0 mm² to 0 mm²
Rated current In (A) : 80
Type of electrical connection 1 : Other
Type of electrical connection 2 : Screw connection
Number of levels : 1
Mounting method : Other
Material insulation body : None
Inflammability class of insulation material according to with UL94 : Other
Width (mm) : 41
Height (mm) : 130
Depth (mm) : 121
Closing plate required : No
