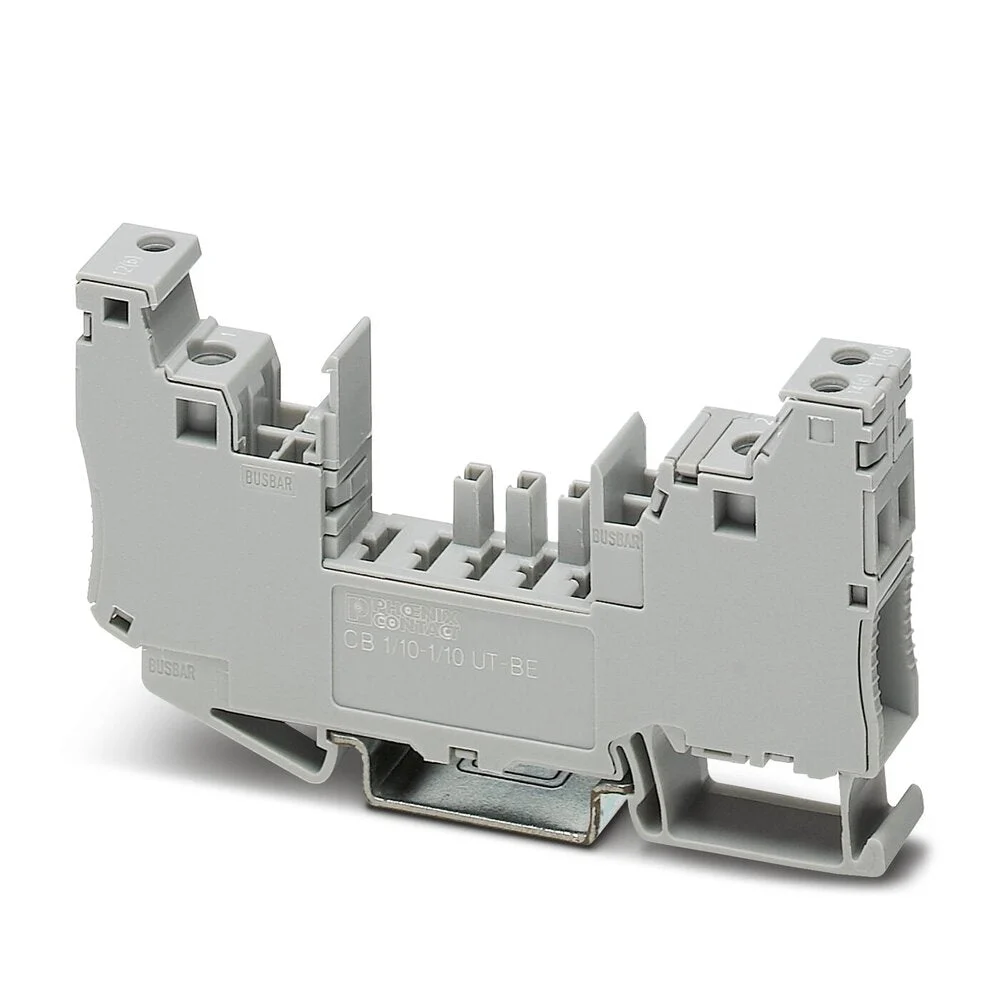

Phoenix Contact Fuse Clamp – 2801305

Base element with screw connection technology for CB. device circuit breakers.

Specifications

Type of fuse insert : Other
Type of fuse holder : Other
Type of indication element for defect indication : Other
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 0.5 mm² to 16 mm²
Connectable conductor cross section solid-core (mm²) : 0.5 mm² to 0.5 mm²
Connectable conductor cross section multi-wired (mm²) : 0.14 mm² to 4 mm²
Rated current In (A) : 16
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Screw connection
Number of levels : 2
Mounting method : Other
Material insulation body : Thermoplastic
Inflammability class of insulation material according to with UL94 : V0
Width (mm) : 12.3
Height (mm) : 90.8
Depth (mm) : 70
Closing plate required : No
