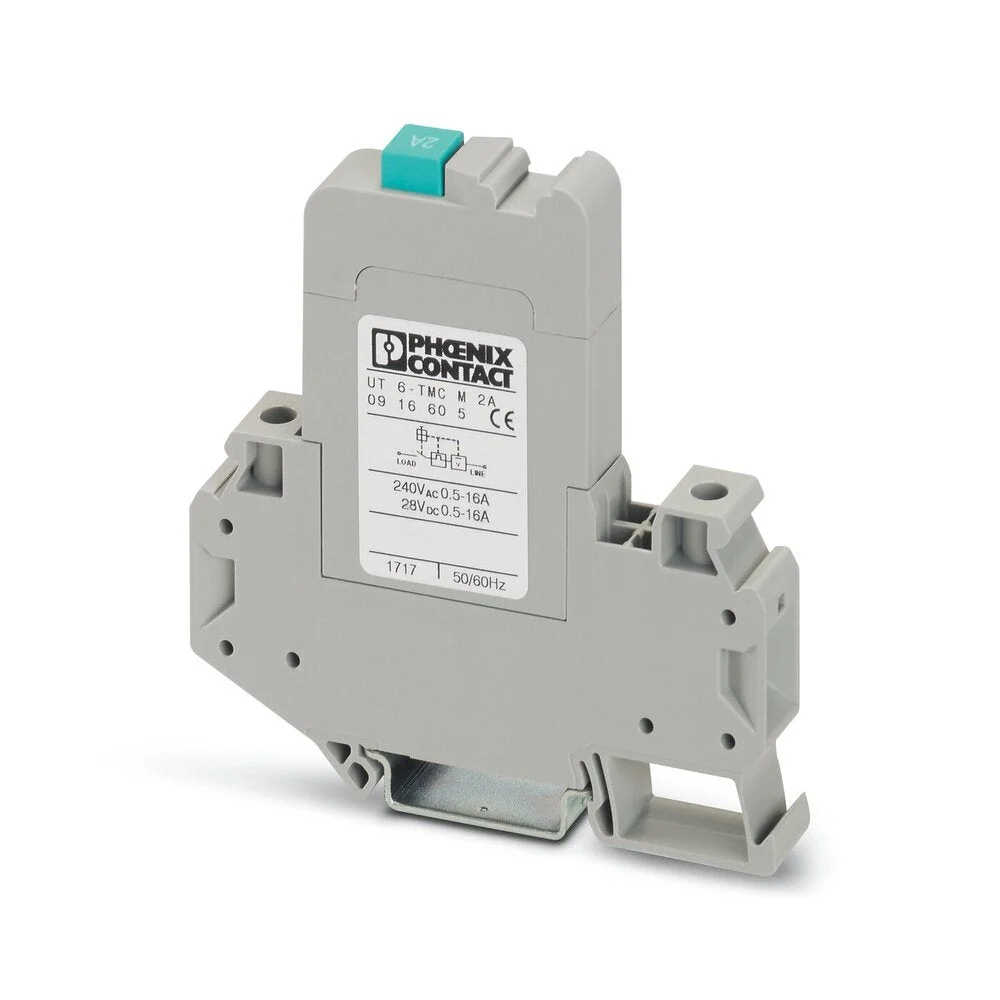

Phoenix Contact fuse row terminal, gray, (WxDxH) 12.3×85.5×85.5mm, fuse cartridge automaton type, supply voltage for fault indica 230V, other, voltage type for fault indication AC, fuse holder type (cartridge other, nom. (measuring) current In 2A, connection position side.
Specifications
Type of fuse insert : Mini circuit breaker
Type of fuse holder : Other
Type of indication element for defect indication : LED
Supply voltage for defect-indication (V) : 230 V to 230 V
Voltage type for defect indication : AC
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.2 mm² to 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 6 mm² to 6 mm²
Connectable conductor cross section solid-core (mm²) : 0.2 mm² to 0.2 mm²
Connectable conductor cross section multi-wired (mm²) : 0.2 mm² to 0.2 mm²
Rated current In (A) : 2
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Screw connection
Number of levels : 1
Mounting method : Other
Material insulation body : Other
Operating temperature (°C) : 60 °C to 60 °C
Inflammability class of insulation material according to with UL94 : Other
Width (mm) : 12.3
Height (mm) : 85.5
Depth (mm) : 89.5
Closing plate required : No
Color : Grey
