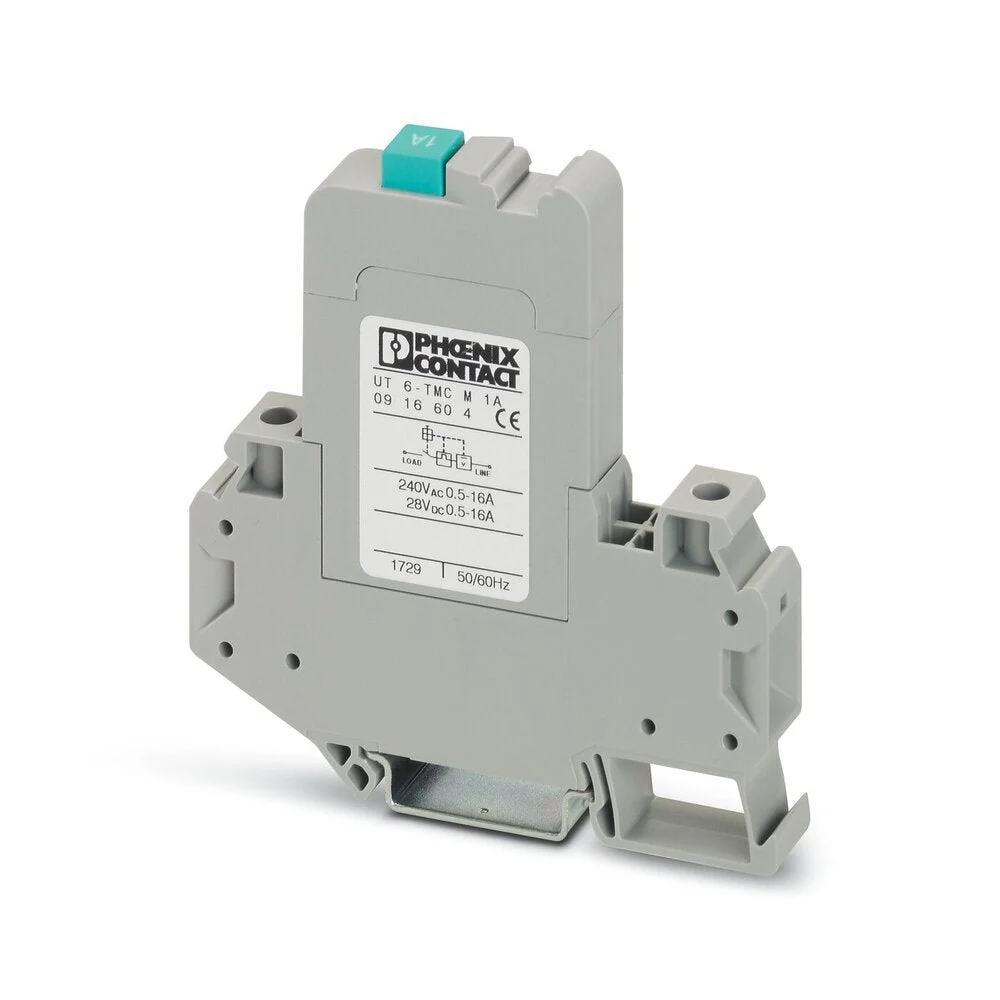

This thermomagnetic protection switch is characterized by its compact design, generous coding options and double-pitch bridge shaft. High availability of the installation is achieved thanks to the reconnectivity and the clear status indication. Phoenix Contact UT fuse row terminal blocks are available in different variants.
Specifications
Type of fuse insert : Mini circuit breaker
Type of fuse holder : Other
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.2 mm² to 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 6 mm² to 6 mm²
Connectable conductor cross section solid-core (mm²) : 0.2 mm² to 0.2 mm²
Connectable conductor cross section multi-wired (mm²) : 0.2 mm² to 0.2 mm²
Rated current In (A) : 1
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Screw connection
Number of levels : 1
Mounting method : Other
Material insulation body : Other
Operating temperature (°C) : 60 °C to 60 °C
Inflammability class of insulation material according to with UL94 : Other
Width (mm) : 12.3
Height (mm) : 85.5
Depth (mm) : 89.5
Closing plate required : No
Color : Grey
