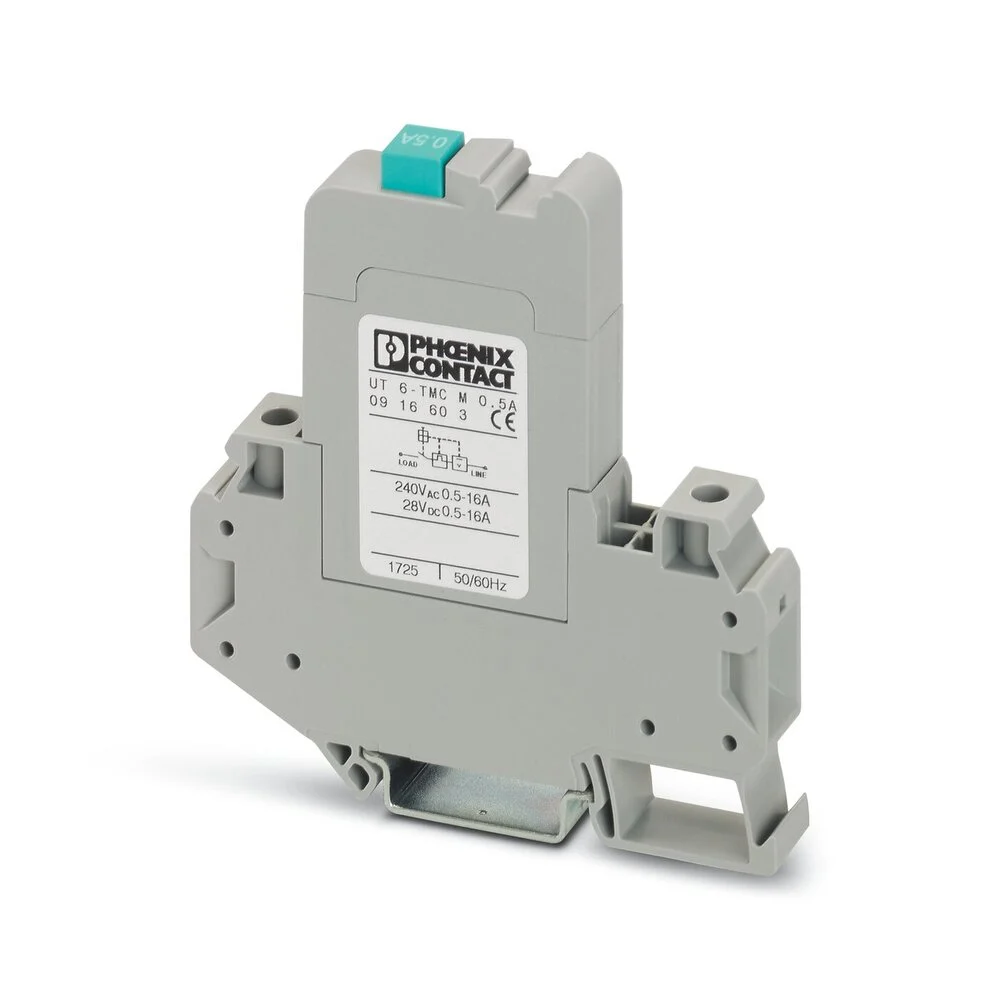

Phoenix Contact fuse terminal, gray, (WxDxH) 12.3×85.5×85.5mm, fuse cartridge automaton type, other, voltage type for fault indication AC, fuse holder type (cartridge other, nom. (measuring) current In 0.5A, connection position above, connectable conductor cross-section duck 0.2mm².
Specifications
Type of fuse insert : Mini circuit breaker
Type of fuse holder : Other
Type of indication element for defect indication : None
Supply voltage for defect-indication (V) : 0 V to 0 V
Voltage type for defect indication : AC
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 0.2 mm² to 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 6 mm² to 6 mm²
Connectable conductor cross section solid-core (mm²) : 0.2 mm² to 0.2 mm²
Connectable conductor cross section multi-wired (mm²) : 0.2 mm² to 0.2 mm²
Rated current In (A) : 0.5
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Screw connection
Number of levels : 1
Mounting method : Other
Material insulation body : Other
Operating temperature (°C) : 60 °C to 60 °C
Inflammability class of insulation material according to with UL94 : Other
Width (mm) : 12.3
Height (mm) : 85.5
Depth (mm) : 89.5
Closing plate required : No
Color : Grey
