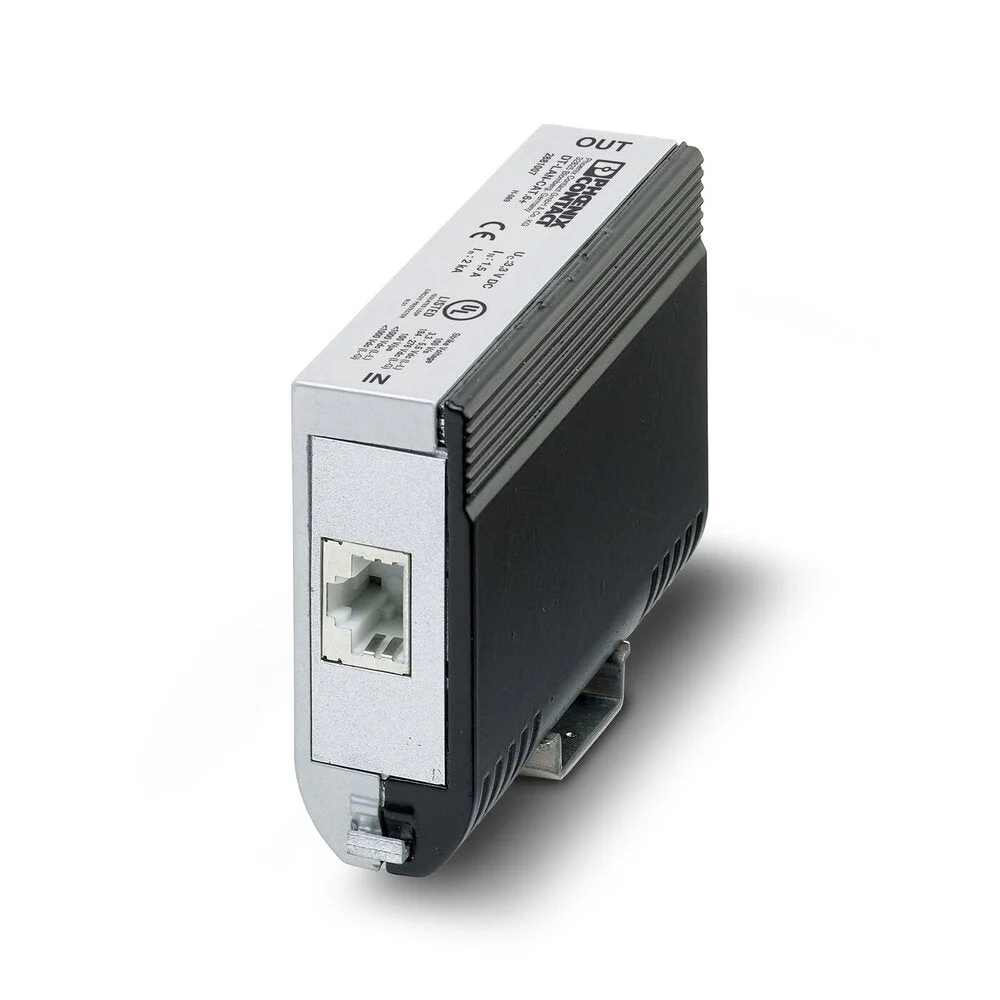

Surge protection in accordance with Class EA (CAT6A), for Gigabit Ethernet (up to 10 Gbps), token ring, FDDI/CDDI, ISDN, and DS1. Suitable for Power over Ethernet (PoE++ / 4PPoE) “Mode A” and “Mode B”. RJ45 attachment plug with separate grounding cable and ground connection snap-on foot for NS 35 DIN rails.
Specifications
Nominal voltage AC (V) : 0 V to 0 V
Nominal voltage DC (V) : 3.3 V to 3.3 V
Max. continuous voltage DC (V) : 3.3
Nominal discharge surge current (8/20) (kA) : 2
Nominal load current (A) : 1.5
Voltage protection level core/core (V) : 9
Voltage protection level core/earth (V) : 900
Limiting frequency (MHz) : 500
Mounting method : Other
Connection 1 : RJ45
Pro-active thermo-control : No
With remote signalling contact : No
Signalling at the device : None
Explosion-tested version : No
