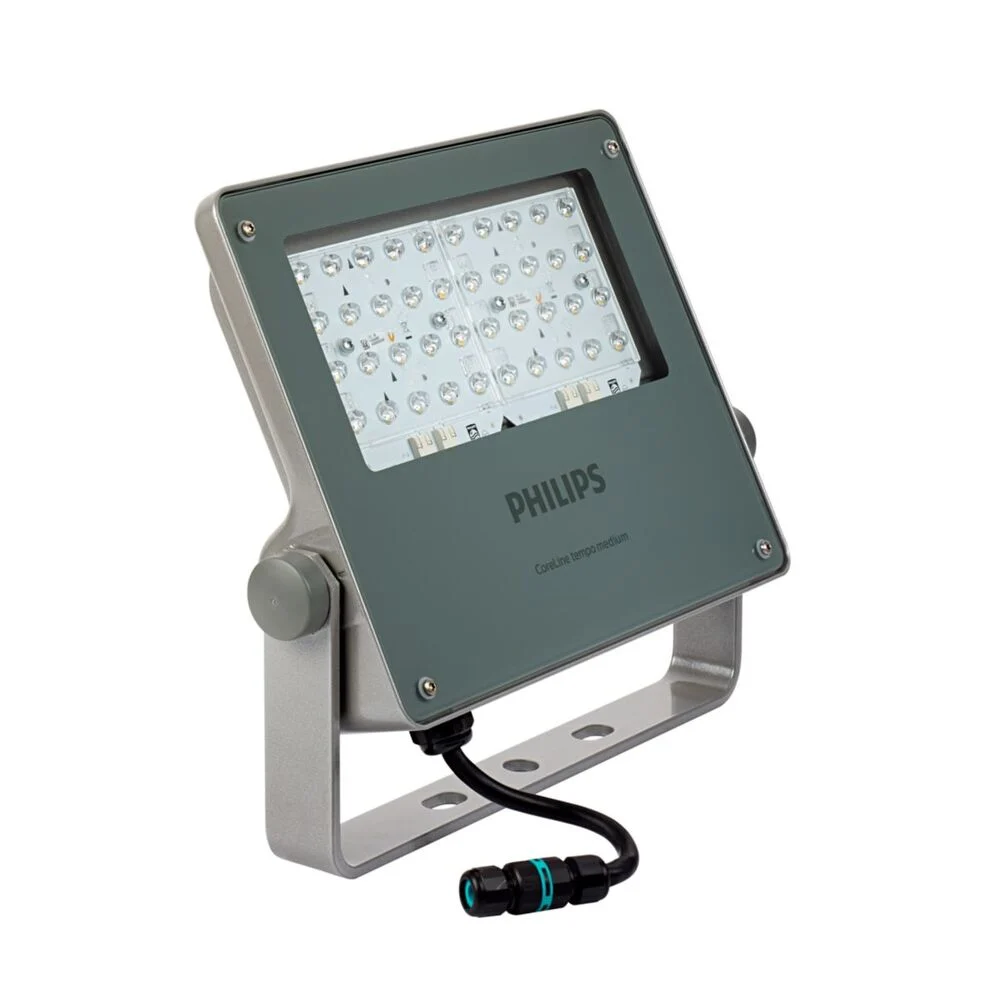

Philips Coreline Downlight/spotlight/floodlight – 45589700

Philips Coreline Floodlight downlight/spotlight/light, subcategory floodlight, temperature 4000K, suitable for surface mounting, housing gray, degree of protection (IP) IP66, luminous flux 12000lm, effective luminous flux according to IEC 12000lm, light color white, suitable for lamp power 93W.

Specifications

Suitable for surface mounting : Yes
Suitable for built-in mounting : No
Suitable for wall mounting : Yes
Suitable for suspended mounting : No
Suitable for ceiling mounting : No
Suitable for traverse mounting : Yes
Suitable for pedestal/floor mounting : Yes
Suitable for light-track mounting : No
Suitable for clamp-mounting : No
Suitable for low voltage cable system : No
Adjustability : Swivelling
With movement sensor : No
With light sensor : No
Lamp type : LED not exchangeable
With light source : Yes
Suitable for number of lamps : 40
Lamp holder : None
Material : Aluminum
Surface protection : Powder coating
Color housing : Grey
Material cover : Glass transparent
Surface brushed : Yes
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
LED nominal current at constant current (mA) : 807 mA to 807 mA
Type of control gear : LED operating device current-controlled
With control gear : Yes
Exchangeable control gear : Yes
Dimming depending on control gear : No
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI-2 : No
Dimming DALI : No
Dimming DMX : No
Dimming DSI : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : Yes
Reflector : None
Light distributor : Diffuser lens/optic/panel
Light sharing : Symmetric
Beam angle : Medium beam 21-40°
Light outlet : Direct
Total harmonic distortion : 7.8
Rated life time L80/B10 at 25 °C (h) : 75000
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) (%) : 90
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) (%) : 10
Constant light output (CLO) : No
Degree of protection (IP) : IP66
Impact strength : IK08
Protection class : I
Rated ambient temperature according to IEC62722-2-1 (°C) : 25 °C to 25 °C
Suitable for lamp power (W) : 93 W to 93 W
Max. system power (W) : 90
Colour of light : White
Colour temperature (K) : 4000 K to 4000 K
Color rendering index CRI : 70-79
Luminous flux (lm) : 12000 lm to 12000 lm
Rated luminous flux according to IEC 62722-2-1 (lm) : 12000
Luminous intensity (cd) : 1495
Power factor : 0.98
Flickering value Pst LM : 0.06
Color temperature adjustable : No
Luminous flux adjustable : No
Beam angle adjustable : No
Stroboscope effect value SVM : 0.09
Width (mm) : 265
Height/depth (mm) : 67.4
Length (mm) : 340.5
Type of wiring : Ending
Number of poles : 3
Conductor cross section (mm²) : 1.5
Connectable conductor cross section (mm²) : 7 mm² to 14 mm²
Connection type : Insulation displacement connector
Luminaire with limited surface temperature, sign “D“ : No
Max. number of luminaires per miniature circuit breaker B16 : 8
Max. number of luminaires per miniature circuit breaker C16 : 13
Emergency power supply integrated : No
Filament test according to IEC 60695-2-11 : 650 °C – 30 s
Luminaire efficacy (lm/W) : 137
Photobiological safety according to EN 62471 : RG1
Suitable for workplace according to EN 12464-1 : Yes
Covering of the luminaire with thermally insulating material possible : No
IFTTT support available : No
Color consistency (McAdam ellipse) : SDCM3
Unified Glare Ratio (UGR) : 0
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
