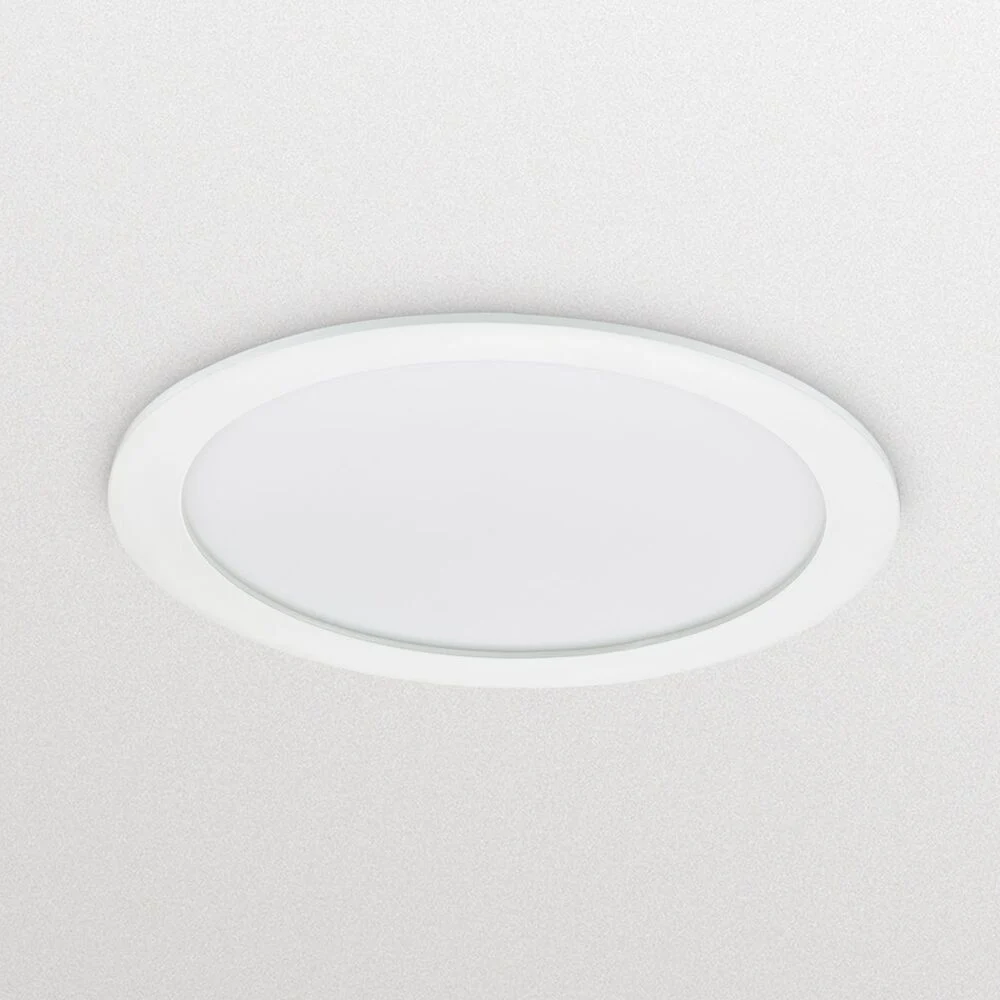

Philips Coreline Downlight/spotlight/floodlight – 33950499

Philips Coreline Downlight downlight/spotlight/spotlight, subcategory downlight, temperature 3867 – 4103K, suitable for recessed mounting, suitable for clip mounting, housing white, recessed diameter 200mm, protection type (IP) IP20, luminous flux 1890 – 2310lm, effective luminous flux according to IEC 2100lm.

Specifications

Suitable for surface mounting : No
Suitable for built-in mounting : Yes
Suitable for wall mounting : No
Suitable for suspended mounting : No
Suitable for ceiling mounting : Yes
Suitable for traverse mounting : No
Suitable for pedestal/floor mounting : No
Suitable for light-track mounting : No
Suitable for clamp-mounting : Yes
Suitable for low voltage cable system : No
Adjustability : Not adjustable
With movement sensor : No
With light sensor : No
Lamp type : LED not exchangeable
With light source : Yes
Suitable for number of lamps : 1
Lamp holder : Other
Material : Aluminum
Surface protection : Powder coating
Color housing : White
Material cover : Plastic, opal
Surface brushed : No
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
LED nominal current at constant current (mA) : 43.7 mA to 48.3 mA
Type of control gear : LED operating device current-controlled
With control gear : Yes
Exchangeable control gear : Yes
Dimming depending on control gear : No
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI-2 : No
Dimming DALI : No
Dimming DMX : No
Dimming DSI : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : Yes
Reflector : None
Light distributor : Diffuser lens/optic/panel
Light sharing : Symmetric
Beam angle : Open beam/diffuse
Light outlet : Direct
Total harmonic distortion : 20
Rated life time L70/B50 at 25 °C (h) : 50000
Rated life time L80/B10 at 25 °C (h) : 34000
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%) : 70
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%) : 5
Constant light output (CLO) : No
Degree of protection (IP) : IP20
Impact strength : IK02
Protection class : II
Rated ambient temperature according to IEC62722-2-1 (°C) : 25 °C to 25 °C
Suitable for lamp power (W) : 18.9 W to 23.1 W
Max. system power (W) : 21
Colour of light : White
Colour temperature (K) : 4000 K to 4000 K
Color rendering index CRI : 80-89
Luminous flux (lm) : 2100 lm to 2100 lm
Rated luminous flux according to IEC 62722-2-1 (lm) : 2100
Luminous intensity (cd) : 1108.094
Power factor : 0.9
Flickering value Pst LM : 1
Color temperature adjustable : No
Luminous flux adjustable : No
Beam angle adjustable : No
Stroboscope effect value SVM : 1.6
Height/depth (mm) : 28
Outer-diameter (mm) : 217
Built-in height/depth (mm) : 28
Built-in diameter (mm) : 203 mm to 208 mm
Type of wiring : Suitable for through wiring
Number of poles : 2
Conductor cross section (mm²) : 0.75
Connectable conductor cross section (mm²) : 0.5 mm² to 1.5 mm²
Connection type : Other
Luminaire with limited surface temperature, sign “D“ : No
Max. number of luminaires per miniature circuit breaker B16 : 16
Max. number of luminaires per miniature circuit breaker C16 : 27
Emergency power supply integrated : No
Filament test according to IEC 60695-2-11 : 650 °C – 30 s
Luminaire efficacy (lm/W) : 100
Photobiological safety according to EN 62471 : RG0
Suitable for workplace according to EN 12464-1 : No
Covering of the luminaire with thermally insulating material possible : No
IFTTT support available : No
Color consistency (McAdam ellipse) : SDCM3
Unified Glare Ratio (UGR) : 28
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
