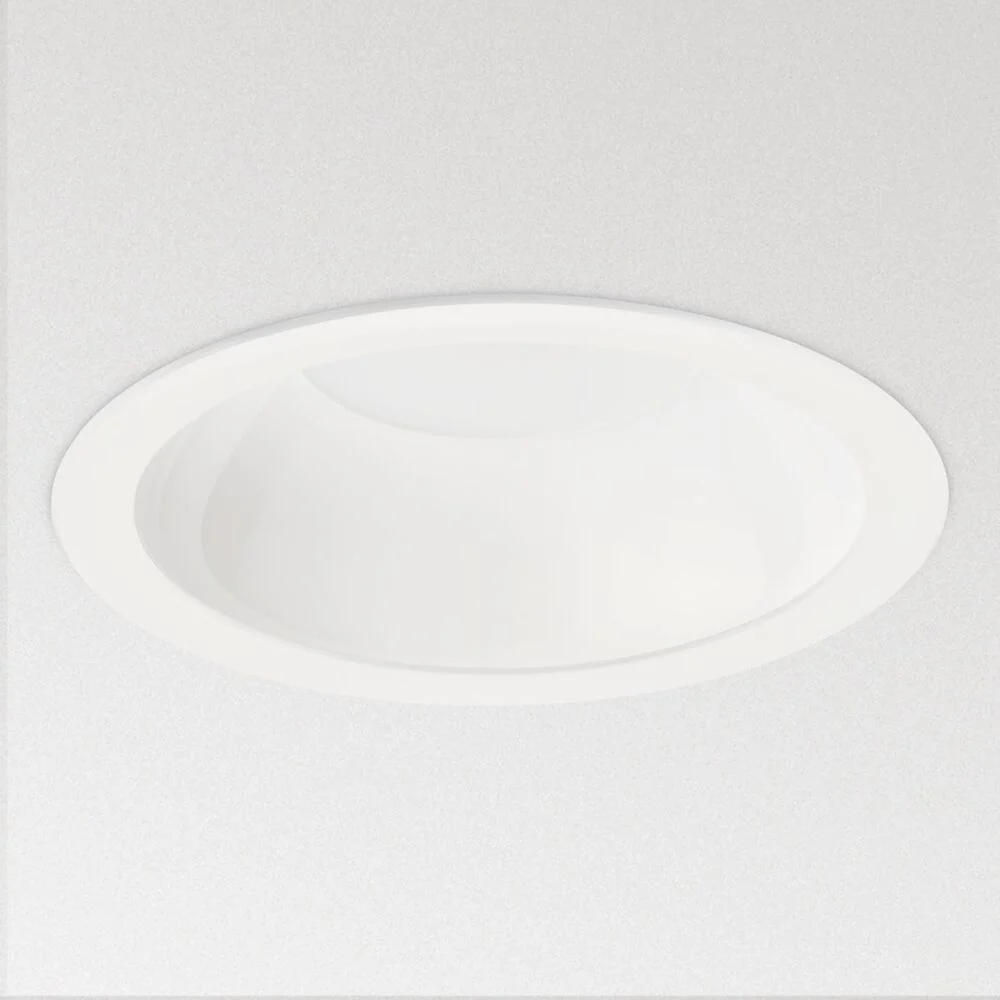

Philips Coreline Downlight/spotlight/floodlight – 32601600

Philips Coreline Downlight downlight/spot/light, subcategory downlight, luminous flux 2200lm, effective luminous flux according to IEC 2200lm, temperature 4000K, light color white, system power 19W, housing multicolor, suitable for recessed mounting, recessed diameter 205mm.

Specifications

Suitable for surface mounting : No
Suitable for built-in mounting : Yes
Suitable for wall mounting : No
Suitable for suspended mounting : No
Suitable for ceiling mounting : Yes
Suitable for traverse mounting : No
Suitable for pedestal/floor mounting : No
Suitable for light-track mounting : No
Suitable for clamp-mounting : No
Suitable for low voltage cable system : No
Adjustability : Not adjustable
With movement sensor : No
With light sensor : No
Lamp type : LED not exchangeable
With light source : Yes
Suitable for number of lamps : 1
Lamp holder : None
Material : Aluminum
Surface protection : Powder coating
Color housing : Multi-colored
Material cover : Glass transparent
Surface brushed : No
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
LED nominal current at constant current (mA) : 125 mA to 125 mA
Type of control gear : LED operating device current-controlled
With control gear : Yes
Dimming depending on control gear : Yes
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming DMX : No
Dimming DSI : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : Yes
Reflector : White
Light distributor : Reflector
Light sharing : Symmetric
Beam angle : Wide beam 41-80°
Light outlet : Direct
Total harmonic distortion : 0.2
Rated life time L70/B50 at 25 °C (h) : 50000
Rated life time L80/B10 at 25 °C (h) : 34000
Degree of protection (IP) : IP54
Impact strength : IK02
Protection class : I
Rated ambient temperature according to IEC62722-2-1 (°C) : -20 °C to 40 °C
Max. system power (W) : 19
Colour of light : White
Colour temperature (K) : 4000 K to 4000 K
Color rendering index CRI : 80-89
Luminous flux (lm) : 2200 lm to 2200 lm
Rated luminous flux according to IEC 62722-2-1 (lm) : 2200
Luminous intensity (cd) : 1170
Power factor : 0.95
Height/depth (mm) : 108
Outer-diameter (mm) : 216
Built-in height/depth (mm) : 200
Built-in diameter (mm) : 205 mm to 205 mm
Type of wiring : Suitable for through wiring
Number of poles : 2
Conductor cross section (mm²) : 0.75
Connectable conductor cross section (mm²) : 0.75 mm² to 1.5 mm²
Connection type : Blade terminal
Luminaire with limited surface temperature, sign “D“ : No
Filament test according to IEC 60695-2-11 : 850 °C – 30 s
Luminaire efficacy (lm/W) : 119
Photobiological safety according to EN 62471 : RG1
Suitable for workplace according to EN 12464-1 : No
Covering of the luminaire with thermally insulating material possible : No
Color consistency (McAdam ellipse) : SDCM5
