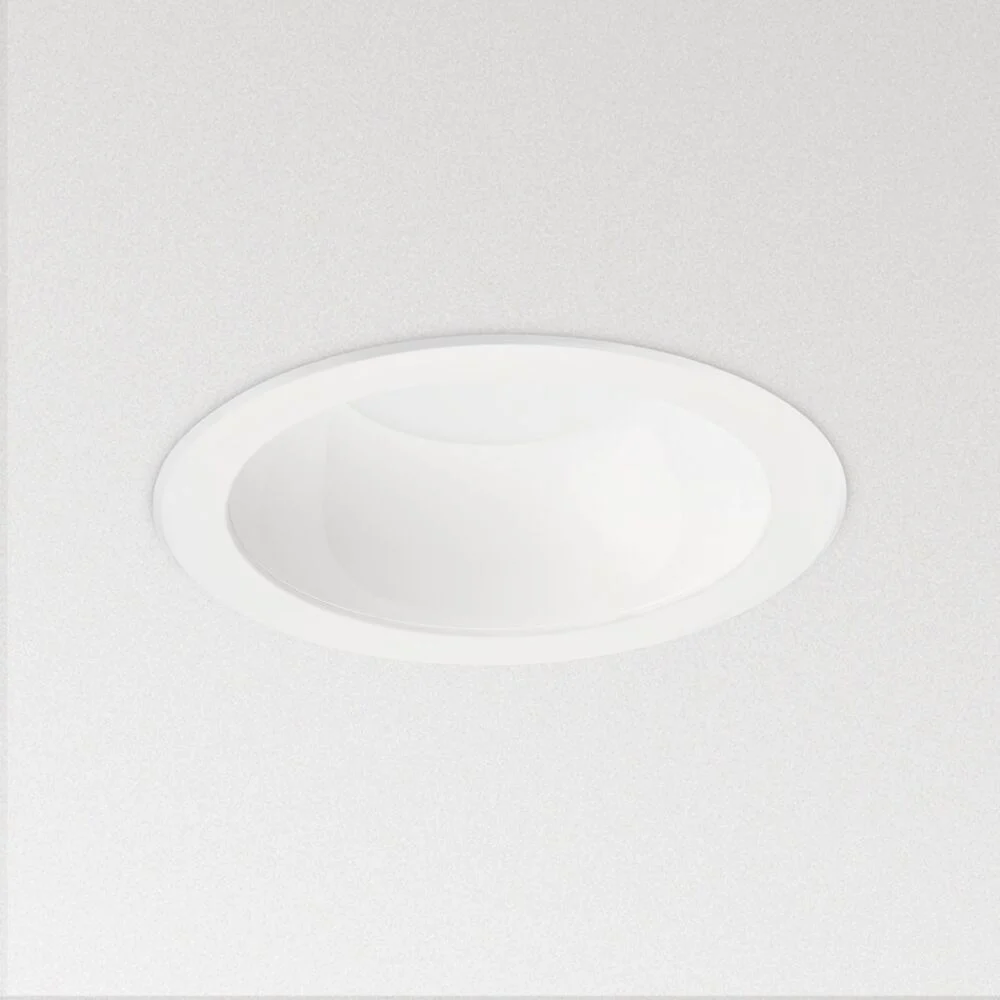

Philips Coreline Downlight/spotlight/floodlight – 32597200

Philips Coreline Downlight downlight/spot/light, subcategory downlight, luminous flux 1100lm, effective luminous flux according to IEC 1100lm, temperature 4000K, light color white, system power 9.5W, housing multicolor, suitable for recessed mounting, recessed diameter 155mm.

Specifications

Suitable for surface mounting : No
Suitable for built-in mounting : Yes
Suitable for wall mounting : No
Suitable for suspended mounting : No
Suitable for ceiling mounting : Yes
Suitable for traverse mounting : No
Suitable for pedestal/floor mounting : No
Suitable for light-track mounting : No
Suitable for clamp-mounting : No
Suitable for low voltage cable system : No
Adjustability : Not adjustable
With movement sensor : No
With light sensor : No
Lamp type : LED not exchangeable
With light source : Yes
Suitable for number of lamps : 1
Lamp holder : None
Material : Aluminum
Surface protection : Powder coating
Color housing : Multi-colored
Material cover : Glass transparent
Surface brushed : No
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
LED nominal current at constant current (mA) : 125 mA to 125 mA
Type of control gear : LED operating device current-controlled
With control gear : Yes
Dimming depending on control gear : Yes
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming DMX : No
Dimming DSI : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : Yes
Reflector : White
Light distributor : Reflector
Light sharing : Symmetric
Beam angle : Wide beam 41-80°
Light outlet : Direct
Total harmonic distortion : 0.2
Rated life time L70/B50 at 25 °C (h) : 50000
Rated life time L80/B10 at 25 °C (h) : 32000
Degree of protection (IP) : IP54
Impact strength : IK02
Protection class : I
Rated ambient temperature according to IEC62722-2-1 (°C) : -20 °C to 40 °C
Max. system power (W) : 9.5
Colour of light : White
Colour temperature (K) : 4000 K to 4000 K
Color rendering index CRI : 80-89
Luminous flux (lm) : 1100 lm to 1100 lm
Rated luminous flux according to IEC 62722-2-1 (lm) : 1100
Luminous intensity (cd) : 620
Power factor : 0.95
Height/depth (mm) : 100
Outer-diameter (mm) : 162
Built-in height/depth (mm) : 200
Built-in diameter (mm) : 155 mm to 155 mm
Type of wiring : Suitable for through wiring
Number of poles : 2
Conductor cross section (mm²) : 0.75
Connectable conductor cross section (mm²) : 0.75 mm² to 1.5 mm²
Connection type : Blade terminal
Luminaire with limited surface temperature, sign “D“ : No
Filament test according to IEC 60695-2-11 : 850 °C – 30 s
Luminaire efficacy (lm/W) : 115
Photobiological safety according to EN 62471 : RG1
Suitable for workplace according to EN 12464-1 : No
Covering of the luminaire with thermally insulating material possible : No
Color consistency (McAdam ellipse) : SDCM5
