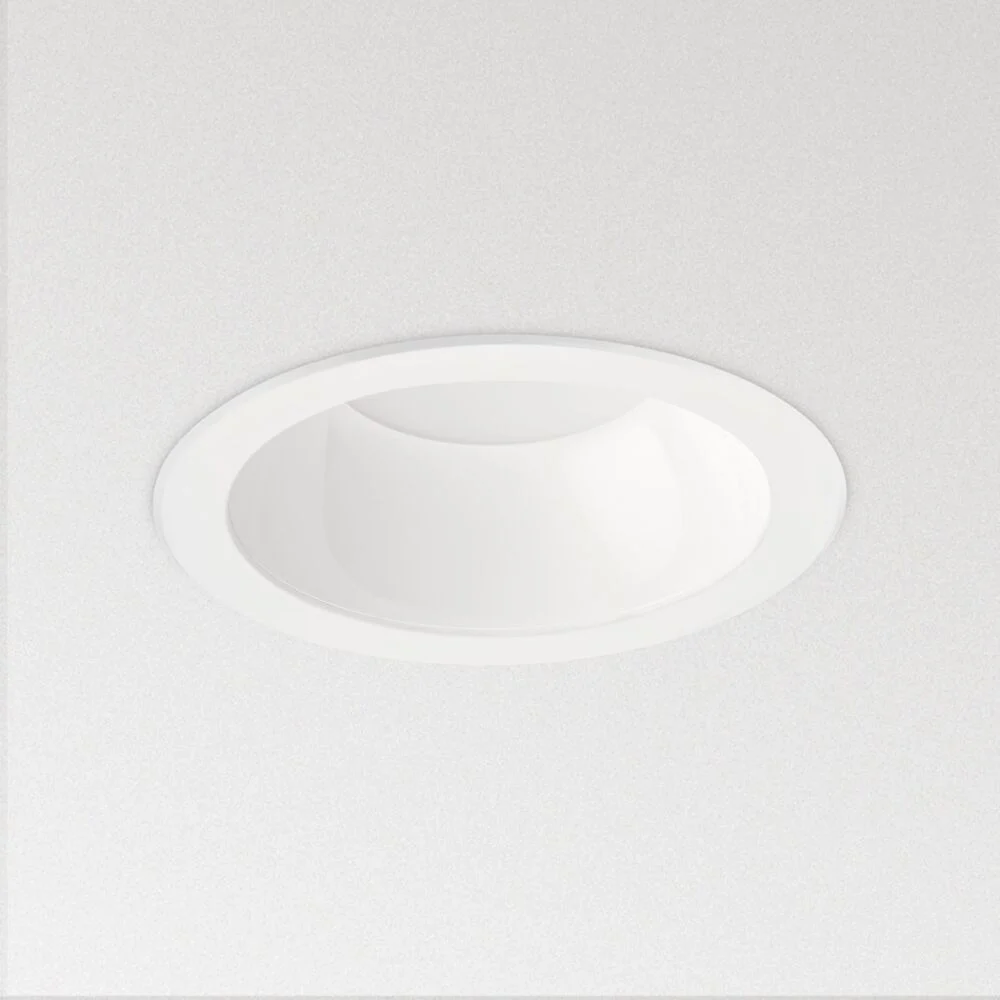

Philips Coreline Downlight/spotlight/floodlight – 32581100

Philips Coreline Downlight downlight/spotlight/light, subcategory downlight, temperature 4000K, suitable for recessed mounting, housing multicolor, recessed diameter 155mm, degree of protection (IP) IP20, luminous flux 1100lm, effective luminous flux according to IEC 1100lm, light color white.

Specifications

Suitable for surface mounting : No
Suitable for built-in mounting : Yes
Suitable for wall mounting : No
Suitable for suspended mounting : No
Suitable for ceiling mounting : Yes
Suitable for traverse mounting : No
Suitable for pedestal/floor mounting : No
Suitable for light-track mounting : No
Suitable for clamp-mounting : No
Suitable for low voltage cable system : No
Adjustability : Not adjustable
With movement sensor : No
With light sensor : No
Lamp type : LED not exchangeable
With light source : Yes
Suitable for number of lamps : 1
Lamp holder : None
Material : Plastic
Surface protection : Untreated
Color housing : White
Material cover : None
Surface brushed : No
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
LED nominal current at constant current (mA) : 125 mA to 125 mA
Type of control gear : LED operating device current-controlled
With control gear : Yes
Exchangeable control gear : No
Dimming depending on control gear : No
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI-2 : No
Dimming DALI : No
Dimming DMX : No
Dimming DSI : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : Yes
Reflector : High-gloss
Light distributor : Diffuser lens/optic/panel
Light sharing : Symmetric
Beam angle : Wide beam 41-80°
Light outlet : Direct
Total harmonic distortion : 30
Rated life time L70/B50 at 25 °C (h) : 50000
Rated life time L80/B10 at 25 °C (h) : 32000
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%) : 70
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%) : 50
Constant light output (CLO) : No
Degree of protection (IP) : IP20
Impact strength : IK02
Protection class : I
Rated ambient temperature according to IEC62722-2-1 (°C) : -20 °C to 40 °C
Max. system power (W) : 9.5
Colour of light : White
Colour temperature (K) : 4000 K to 4000 K
Color rendering index CRI : 80-89
Luminous flux (lm) : 1000 lm to 1000 lm
Rated luminous flux according to IEC 62722-2-1 (lm) : 1000
Luminous intensity (cd) : 616
Power factor : 0.95
Flickering value Pst LM : 1
Color temperature adjustable : No
Luminous flux adjustable : No
Beam angle adjustable : No
Stroboscope effect value SVM : 0.4
Height/depth (mm) : 100
Outer-diameter (mm) : 162
Built-in height/depth (mm) : 200
Built-in diameter (mm) : 150 mm to 150 mm
Type of wiring : Ending
Number of poles : 3
Conductor cross section (mm²) : 0.75
Connectable conductor cross section (mm²) : 0.75 mm² to 1.5 mm²
Connection type : Push-in clamp
Luminaire with limited surface temperature, sign “D“ : No
Max. number of luminaires per miniature circuit breaker B16 : 48
Max. number of luminaires per miniature circuit breaker C16 : 80
Emergency power supply integrated : No
Filament test according to IEC 60695-2-11 : 850 °C – 30 s
Luminaire efficacy (lm/W) : 115
Photobiological safety according to EN 62471 : RG0
Suitable for workplace according to EN 12464-1 : No
Covering of the luminaire with thermally insulating material possible : No
IFTTT support available : No
Color consistency (McAdam ellipse) : SDCM5
Unified Glare Ratio (UGR) : 25
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
