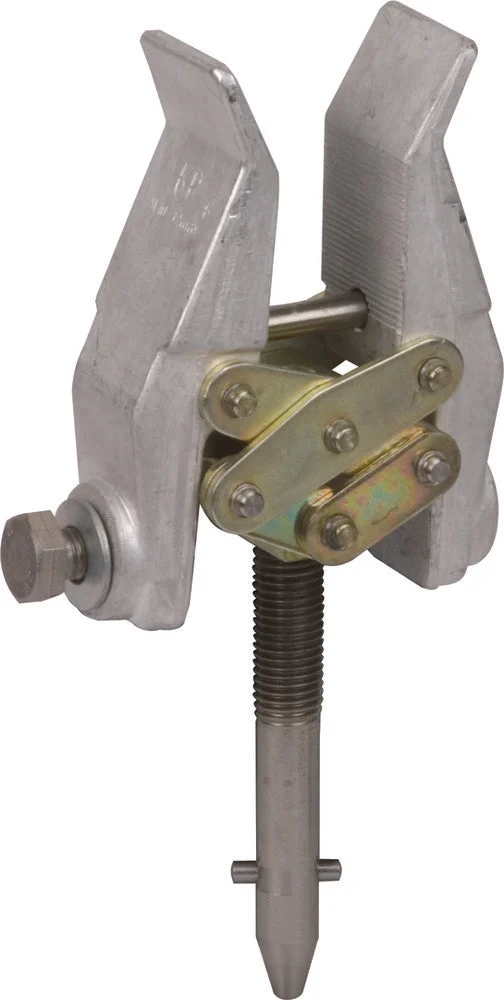

Phase Screw Clamp D 10-32mm T Pin Shaft Connection Element – 784032

This is a phase screw clamp that comes with parallel clamping jaws and a stretched T-shaped threaded pin shaft, specifically meant for connecting the phase cables of earthing and short-circuiting devices in compliance with EN/IEC 61230 (DIN VDE 0683-100). It is capable of handling a maximum short circuit current of 18.7kA and prearranged for wire-cross section of 16 – 95mm², with a clamp range of 10 – 32mm. The feature designed to connect an overhead power line includes PK2 anti-rotation element, preventing twisting. It also provides fixture for a controlling rod spindle using transverse pins. The device can be applied on the phase side.

Specifications

Max. short circuit current (kA) : 18.7
For wire cross section (mm²) : 16 mm² to 95 mm²
Clamping range (mm) : 10 mm to 32 mm
Connection type : Power cable for overhead lines
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with cross pin
Application : Phase-side
