About this item

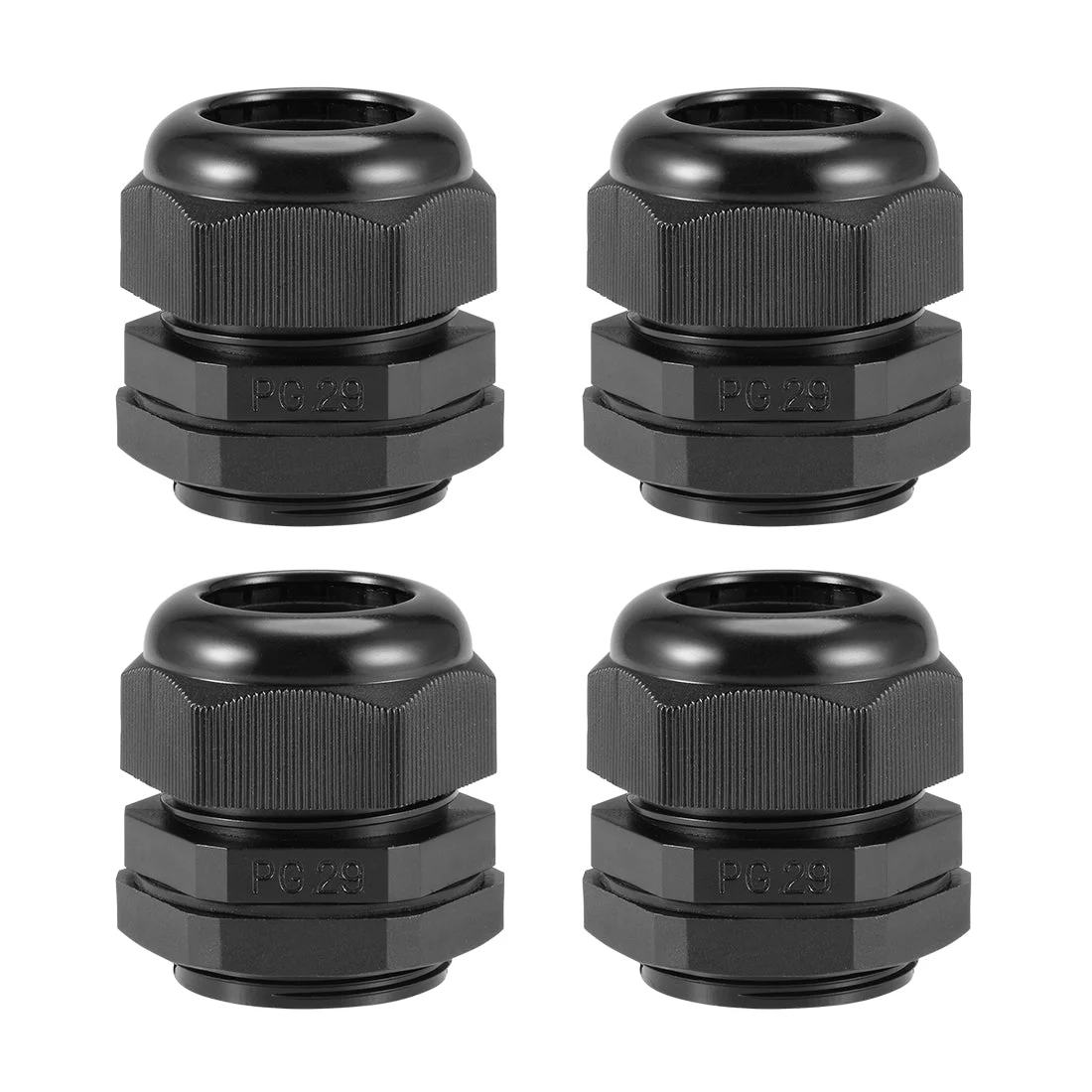

- Type: PG29, Single Hole; Cable Range: 13mm-24mm/0.51inch-0.94inch .
- Thread Diameter: 37mm / 1.46″ ; Thread Length: 15mm / 0.59″.
- Cable joints are made of nylon plastic, anti-loose structure, reliable connection and long service life.
- Can be inserted directly and easily tightened without disassembly. It consists of a lock nut, valve body, seal and sealing nut.
- Great accessory for cable fixing, wiring, mechanical control box, switchboard, electrical appliances, etc. .
Description:
Complete With Locknut and Washer.
Waterproof rated up to IP68.
Waterproof, Dust-proof, Anti-acid, Anti-alcohol and so on.
Easy to install, and help you clamping cable.
Great accessory for junction boxes or anything where inserting a cable could cause water to enter into live electrics, using the correct rated cable compression gland will ensure the item stays waterproof.
Work Environment:
1. Static state: -40C – +100C in static state, instantaneous heat resistance up to 120C.
2. Dynamic: -20C – +80C in static state, instantaneous heat resistance up to 100C.
Specifications:
Type:PG29, Single Hole
Material: Nylon + Rubber
Cable Range: 13mm-24mm/0.51inch-0.94inch
Total Size: 50 x 44mm / 1.97 x 1.73inch (L*D)
Thread Diameter: 37mm / 1.46″
Thread Length: 15mm / 0.59″
Packing Included:
4 x Cable Gland
