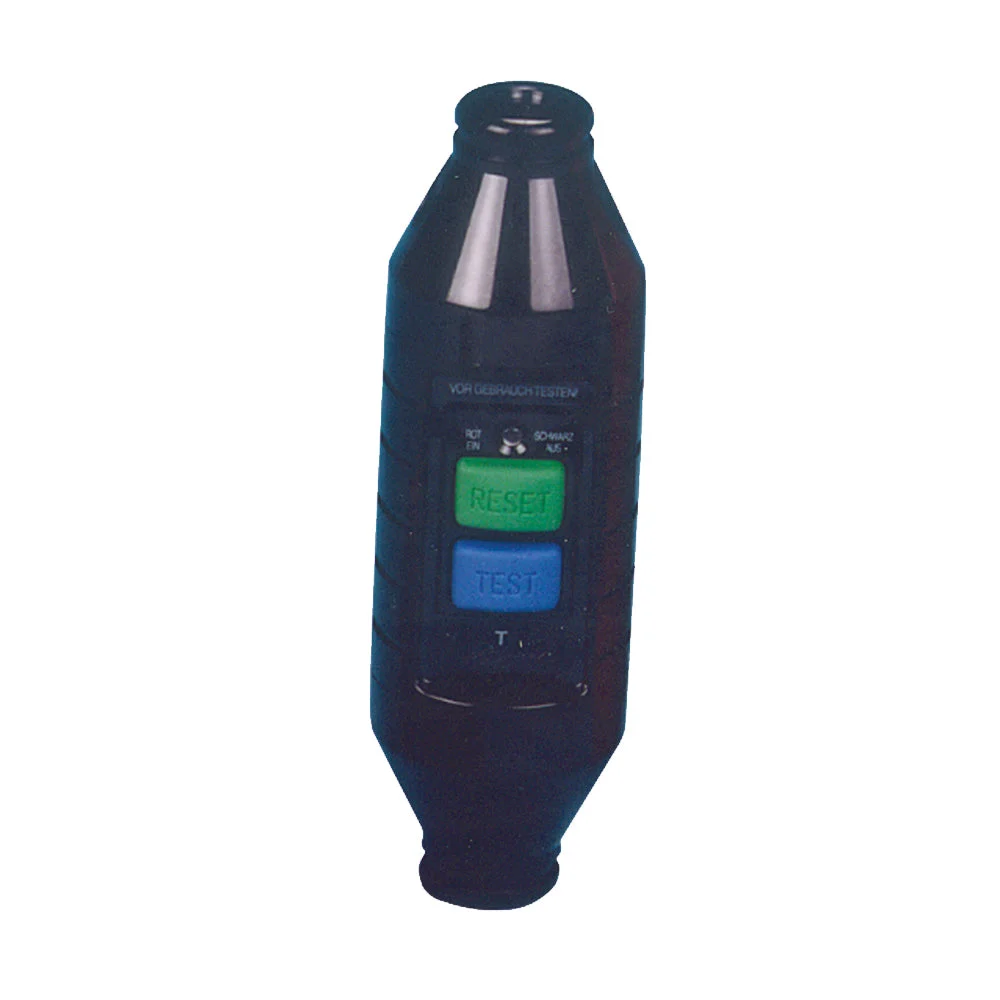

PDL Ground Fault Circuit Interrupter – 380020112

This PDL intermediate connector with ground fault circuit interrupter separates the active conductors from the mains at lightning speed as soon as differential currents occur. Using the test button, the proper functioning of the device can be verified.

Specifications

Number of poles : 2
Rated voltage (V) : 230
Rated current (A) : 16
Rated fault current (A) : 0.03
Mounting method : Adapter plug
Leakage current type : A
Selective protection : No
Short-time delayed tripping : No
Short-circuit breaking capacity (Icw) (kA) : 0
Surge current capacity (kA) : 0
Voltage-type : AC
With interlocking device : No
Frequency : 50 Hz
Additional equipment possible : No
Degree of protection (IP) : IP55
Built-in depth (mm) : 0
Ambient temperature during operating (°C) : -25 °C to 40 °C
Explosion-proof : No
