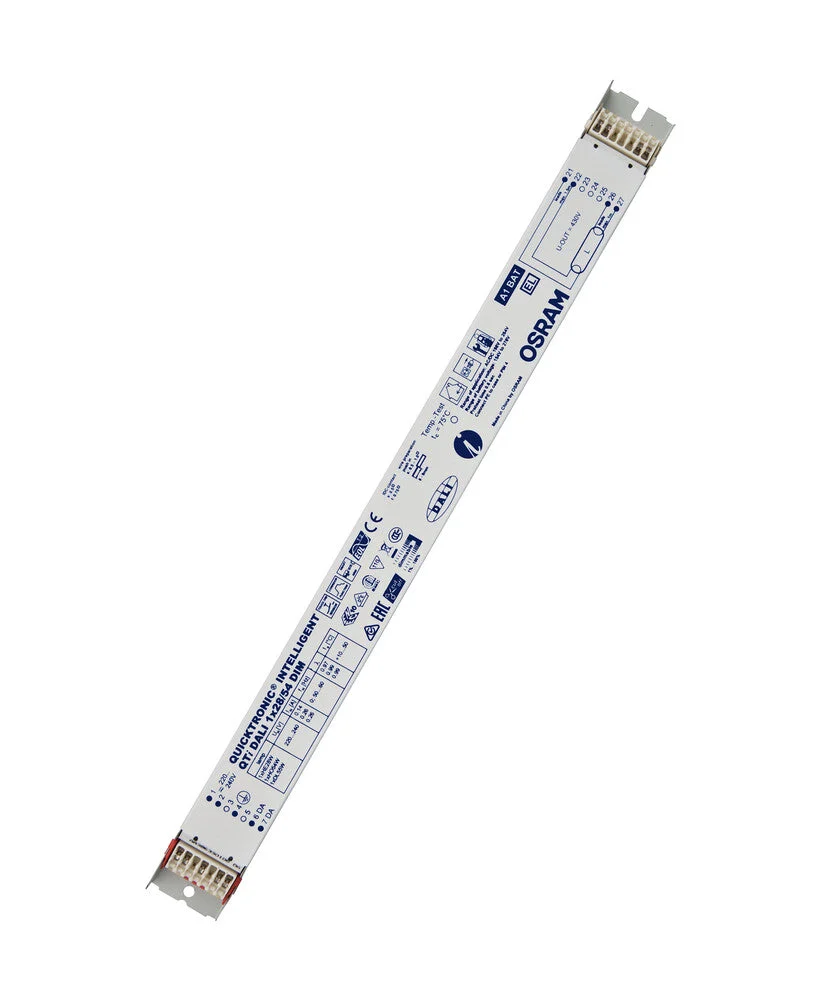

Osram Quicktronic Ballast – 4050300870809

ECG dimmable DALI for FL 16 mm. Product features:

• Corridor function for the direct connection of ECG to a common motion sensor.
• Corridor function with a pre-programmed light program.
• Touch DIM® function for free parameterization of light value and turn-on time.
• Fit for SMART GRID for feedback of consumed mains power and lamp operating hours.
• Fit for the Emergency function for automatic detection of emergency lighting by ECG.
• Low standby power consumption: 100,000 h (for Tc = 65 °C ).
• High number of switching cycles: up to 300,000.
• Dimming range: 1…100 % (3…100 % with a compact fluorescent lamp).
• POWER2LAMP function for optimal matching of ECG power to the lamp during lamp lifetime.
• Line frequency: 0 Hz, 50…60 Hz, rectified AC.

Product benefits:

• System+ Guarantee available.
• Easy integration into luminaires thanks to dimensions similar to DALI GI ECG.
• TouchDIM® function for easy and inexpensive dimming of several ECGs.
• Same luminous flux with direct and alternating current.
• Dimming of amalgam lamps without flickering or reduced lifespan.
• Automatic restart after lamp replacement.
• No new approvals required.

Areas of application:

• Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100.
• Installation in emergency lighting systems according to IEC 61347-2-3, appendix J.
• Industry.
• Open-plan offices, corridors, and storage rooms.
• Public buildings.
• Sports halls and factories.
• Strip lighting.
• Shop lighting.
• Suitable for luminaires of protection class I.

Specifications

Model : Electronic
Multiwatt model : Yes
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : Yes
Dimming DSI : No
Dimming DMX : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : Yes
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : No
For lamp type HI : No
For lamp type HM : No
For lamp type HS : No
For lamp type LS : No
For lamp type T7 : No
For lamp type T16 : Yes
For lamp type T16-R : Yes
For lamp type T26 : No
For lamp type T38 : No
For lamp type T-R : No
For lamp type T-U : No
For lamp type TC-D : No
For lamp type TC-DD : No
For lamp type TC-DEL : No
For lamp type TC-F : Yes
For lamp type TC-L : Yes
For lamp type TC-QEL : No
For lamp type TC-S : No
For lamp type TC-SEL : No
For lamp type TC-T : No
For lamp type TC-TEL : No
Suitable for lamp power (1 lamp) (W) : 28 W to 54 W
Suitable for number of lamps : 1 to 1
Suitable for lamp power (W) : 59 W to 59 W
Nominal voltage (V) : 220 V to 240 V
Housing : Metal housing
With strain relief : No
Degree of protection (IP) : IP20
Protection class : I
Length (mm) : 360
Width (mm) : 30
Height (mm) : 21
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : Yes
