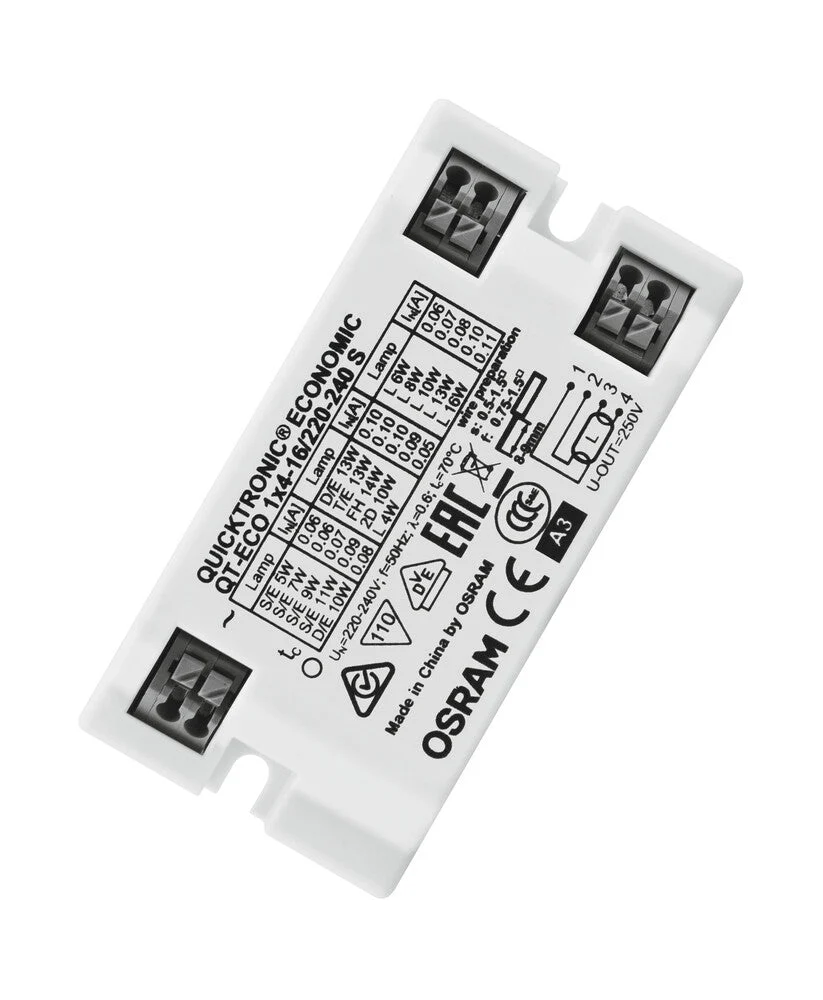

Osram Quicktronic Ballast – 4050300638584

ECG for FL 7 mm and CFL. The product features a supply voltage of 220 to 240 V, with a line voltage of 198 to 264 V. The line frequency is 50 Hz to 60 Hz. The Energy Efficiency Index EEI ranges from A2 to A3, depending on the lamp. The product automatically shuts down defective lamps and at the end of life.

Benefits of the product include:

• A compact housing
• Automatic restart after lamp replacement
• A large input voltage range

This product is suitable for application in public buildings.

Specifications

Model : Electronic
Multiwatt model : Yes
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming DSI : No
Dimming DMX : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : Yes
For lamp type HI : No
For lamp type HM : No
For lamp type HS : No
For lamp type LS : No
For lamp type T7 : No
For lamp type T16 : Yes
For lamp type T16-R : No
For lamp type T26 : Yes
For lamp type T38 : No
For lamp type T-R : No
For lamp type T-U : No
For lamp type TC-D : Yes
For lamp type TC-DD : No
For lamp type TC-DEL : Yes
For lamp type TC-F : No
For lamp type TC-L : No
For lamp type TC-QEL : No
For lamp type TC-S : Yes
For lamp type TC-SEL : Yes
For lamp type TC-T : Yes
For lamp type TC-TEL : Yes
Suitable for lamp power (1 lamp) (W) : 4 W to 16 W
Suitable for number of lamps : 1 to 1
Suitable for lamp power (W) : 4 W to 16 W
Nominal voltage (V) : 220 V to 240 V
Housing : Plastic housing
With strain relief : No
Degree of protection (IP) : IP20
Protection class : I
Length (mm) : 80
Width (mm) : 40
Height (mm) : 22
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : Yes
