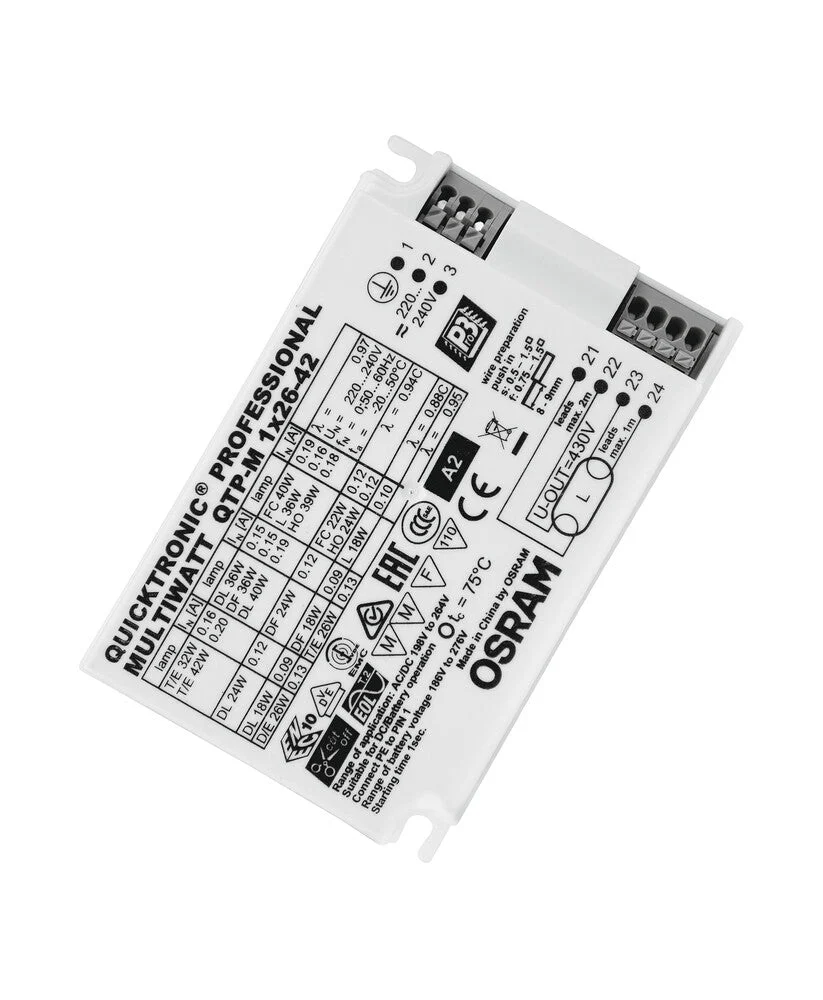

Osram Quicktronic Ballast – 4008321329134

ECG for CFL. Product features include a supply voltage of 220 to 240 V, line voltage of 198 to 264 V and line frequency of 0 Hz, 50 Hz, or 60 Hz. The lamp starts with optimum filament preheating. The Energy Efficiency Index is rated at A2. In case of defective lamps or at the end of life, automatic shutdown is provided. Lamp operation complies with EN 60929 and safety standards align with EN 61347-2-3.

The product’s benefits include:

• Long lamp life
• No adverse effect from frequent on/off switching
• Automatic restart after lamp replacement
• Perfect lamp start for applications with motion sensors

Separate installations are facilitated thanks to optional cable clamp for K2 and K3 casings. The system is VDE/VDE EMC certified. It can be used in emergency lighting systems according to EN 50172 / DIN VDE 0108-100, public buildings, sports halls and factories. It is suitable for luminaires of protection class I.

Specifications

Model : Electronic
Multiwatt model : Yes
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming DSI : No
Dimming DMX : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : Yes
For lamp type HI : No
For lamp type HM : No
For lamp type HS : No
For lamp type LS : No
For lamp type T7 : No
For lamp type T16 : Yes
For lamp type T16-R : Yes
For lamp type T26 : Yes
For lamp type T38 : No
For lamp type T-R : No
For lamp type T-U : No
For lamp type TC-D : Yes
For lamp type TC-DD : Yes
For lamp type TC-DEL : Yes
For lamp type TC-F : Yes
For lamp type TC-L : Yes
For lamp type TC-QEL : Yes
For lamp type TC-S : No
For lamp type TC-SEL : Yes
For lamp type TC-T : Yes
For lamp type TC-TEL : Yes
Suitable for lamp power (1 lamp) (W) : 26 W to 42 W
Suitable for number of lamps : 1 to 1
Suitable for lamp power (W) : 26 W to 42 W
Nominal voltage (V) : 220 V to 240 V
Housing : Plastic housing
With strain relief : No
Degree of protection (IP) : IP20
Protection class : I
Length (mm) : 103
Width (mm) : 67
Height (mm) : 31
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : Yes
