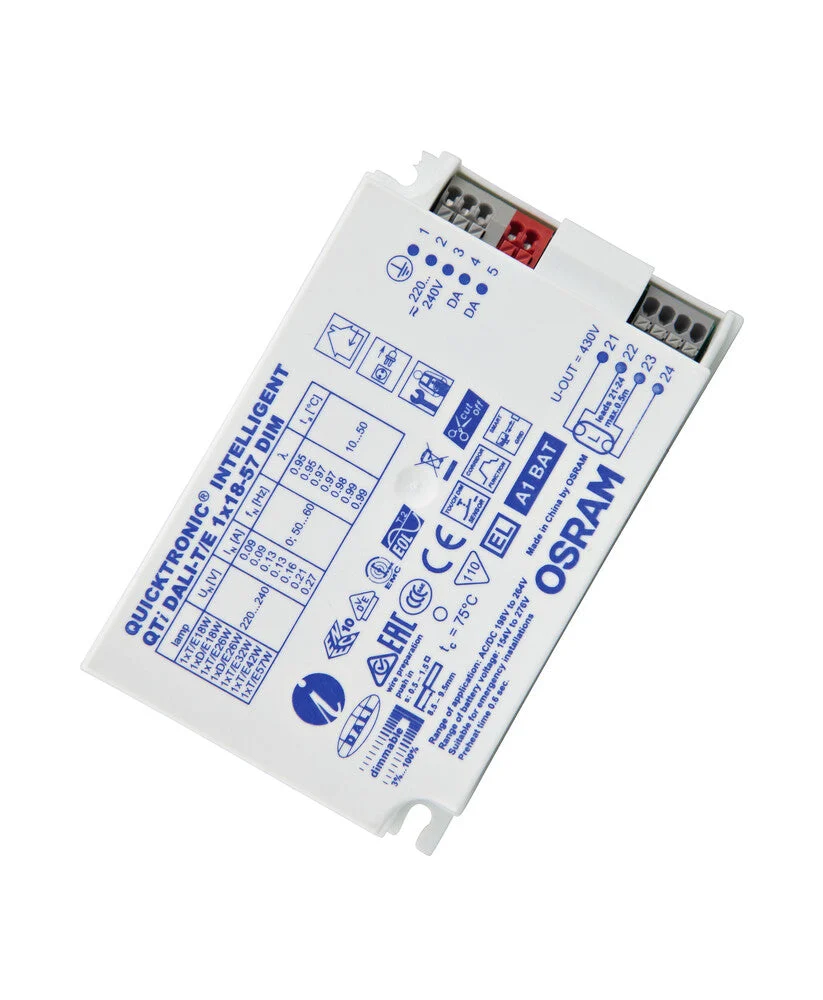

ECG dimmable DALI for CFL. Product features include a corridor function for direct connection of ECG to a common motion sensor. It also has a corridor function with a pre-programmed light program. Touch DIM® function allows free parameterization of light value and turn-on time. It is suitable for SMART GRID, providing feedback on consumed mains power and lamp operating hours.
The product can also detect emergency lighting automatically. It has a very low standby power consumption. The product life is 100,000 hours when the temperature coefficient (Tc) is 65 °C. It boasts a very high number of switching cycles, up to 300,000. The product offers a dimming range of 1 to 100 % (3 to 100 % with a compact fluorescent lamp).
It also has a POWER2LAMP function for optimal matching of ECG power to lamp during lamp lifespan. The line frequency ranges from 0 Hz to 50 to 60 Hz, with rectified AC. Product benefits include easy integration in luminaire thanks to dimensions similar to DALI GI ECG.
- Areas of application include open-plan offices, corridors, and storage rooms in public buildings.
- It is suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100.
- It can be installed in emergency lighting systems according to IEC 61347-2-3, appendix J.
- The product is suitable for luminaires of protection class I.
Specifications
Model : Electronic
Multiwatt model : Yes
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : Yes
Dimming DSI : No
Dimming DMX : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : Yes
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : No
For lamp type HI : No
For lamp type HM : No
For lamp type HS : No
For lamp type LS : No
For lamp type T7 : No
For lamp type T16 : No
For lamp type T16-R : No
For lamp type T26 : No
For lamp type T38 : No
For lamp type T-R : No
For lamp type T-U : No
For lamp type TC-D : No
For lamp type TC-DD : No
For lamp type TC-DEL : Yes
For lamp type TC-F : No
For lamp type TC-L : No
For lamp type TC-QEL : No
For lamp type TC-S : No
For lamp type TC-SEL : No
For lamp type TC-T : No
For lamp type TC-TEL : Yes
Suitable for lamp power (1 lamp) (W) : 18 W to 57 W
Suitable for number of lamps : 1 to 1
Suitable for lamp power (W) : 61 W to 61 W
Nominal voltage (V) : 220 V to 240 V
Housing : Metal housing
With strain relief : No
Degree of protection (IP) : IP20
Protection class : I
Length (mm) : 123
Width (mm) : 79
Height (mm) : 33
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : No
