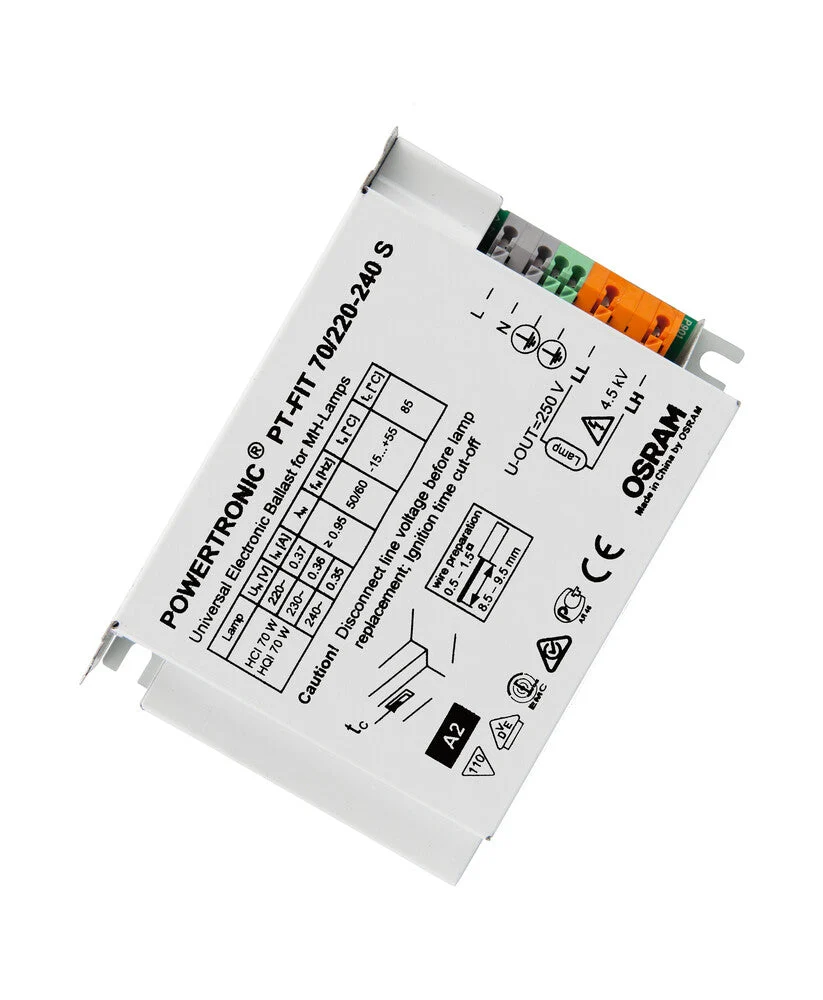

The ECG for HID lamps is designed for installation in luminaires. Some of the product features are:
- Energy Efficiency Index EEI of A2
- Supply voltage of 220 to 240 V
- Line frequency of 50 to 60 Hz
- RI suppression according to EN 55015/CISPR 15
- Safety according to EN 61347-2-12
- Complies with line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
The benefits of the product include an optimized cost/benefit factor, compact dimensions, and low weight for small luminaire designs. It also provides an automatic safety shutdown of lamps in the event of a defect or at the end of life.
This product can be applied in areas such as shop lighting and health and fitness areas, but only in dry, corrosion-protected places. It is also suitable for effect and accent lighting.
Specifications
Model : Electronic
Multiwatt model : No
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming DSI : No
Dimming DMX : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : Yes
For lamp type HI : Yes
For lamp type HM : Yes
For lamp type HS : No
For lamp type LS : No
For lamp type T7 : No
For lamp type T16 : No
For lamp type T16-R : No
For lamp type T26 : No
For lamp type T38 : No
For lamp type T-R : No
For lamp type T-U : No
For lamp type TC-D : No
For lamp type TC-DD : No
For lamp type TC-DEL : No
For lamp type TC-F : No
For lamp type TC-L : No
For lamp type TC-QEL : No
For lamp type TC-S : No
For lamp type TC-SEL : No
For lamp type TC-T : No
For lamp type TC-TEL : No
Suitable for lamp power (1 lamp) (W) : 70 W to 70 W
Suitable for number of lamps : 1 to 1
Suitable for lamp power (W) : 73 W to 73 W
Nominal voltage (V) : 220 V to 240 V
Housing : Metal housing
With strain relief : No
Degree of protection (IP) : IP20
Protection class : I
Length (mm) : 110
Width (mm) : 75
Height (mm) : 30
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : Yes
